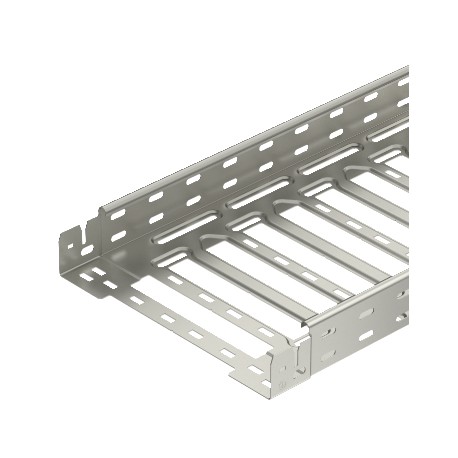

OBO BETTERMANN SKSM 660 VA4571 6059519 OBO BETTERMANN TRAY SKSMAGIC 660 VA4571 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6059519 OBO BETTERMANN TRAY SKSMAGIC 660 VA4571

SKSM 660 VA4571

6059519

OBO BETTERMANN

3 Pcs.

TRAY SKSMAGIC 660 VA4571 Cable tray SKS-Magic® 60 A4. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Obo Bettermann, the SKSM 660 VA4571 is a stainless steel perforated cable tray utilized in heavy-duty commercial and industrial wiring runs. Cable trays organize large volumes of electrical conductors while ensuring structural longevity in harsh operating zones. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 42,7061 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Integrated connector
  • Dimension: 60x600x3050
  • Dimension B: 600 mm
  • Dimension L: 480 mm
  • Dimension x: 396 mm
  • Dimension y: 562 mm
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4571
  • Mounting perforation in base: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate42,7061 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension60x600x3050
Dimension B600 mm
Dimension L480 mm
Dimension x396 mm
Dimension y562 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialStainless steel 1.4571
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m1,9 kN/m
Support spacing 2.0 m1,55 kN/m
Support spacing 2.5 m1,18 kN/m
Support spacing 3.0 m0,8 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section358 cm²
Usable cross-section35800 mm²
Wide-span versionno
Width600 mm
With coverno
