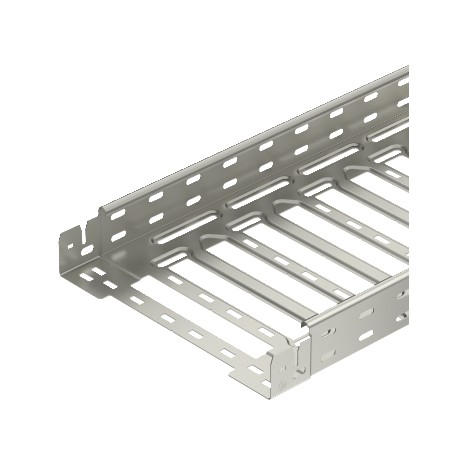

6059515 OBO BETTERMANN TRAY SKSMAGIC 640 VA4571
SKSM 640 VA4571
6059515
OBO BETTERMANN
3 Pcs.
TRAY SKSMAGIC 640 VA4571
Cable tray SKS-Magic® 60 A4. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 31,2825 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x400x3050 |
| Dimension B | 400 mm |
| Dimension L | 280 mm |
| Dimension x | 296 mm |
| Dimension y | 362 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 2,7 kN/m |
| Support spacing 2.0 m | 2,1 kN/m |
| Support spacing 2.5 m | 1,47 kN/m |
| Support spacing 3.0 m | 0,8 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 238 cm² |
| Usable cross-section | 23800 mm² |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
