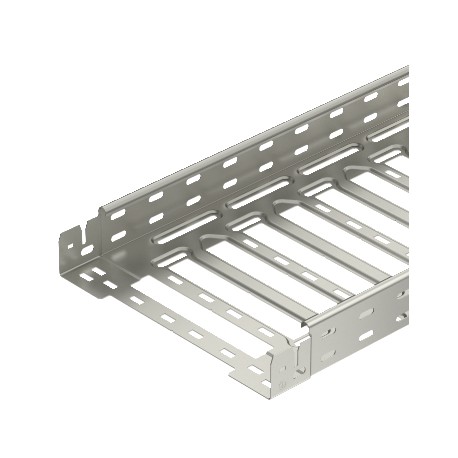

6059511 OBO BETTERMANN TRAY SKSMAGIC 620 VA4571
SKSM 620 VA4571
6059511
OBO BETTERMANN
3 Pcs.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
6059511 OBO BETTERMANN TRAY SKSMAGIC 620 VA4571 is a stainless steel cable tray engineered to support electrical wiring systems while resisting corrosive environments in industrial settings. Premium material trays protect critical power and control lines against moisture and harsh chemical exposure along overhead or wall-mounted pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 19,8194 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 60x200x3050
- Dimension B: 200 mm
- Dimension L: 80 mm
- Dimension x: 96 mm
- Dimension y: 162 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 19,8194 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x200x3050 |
| Dimension B | 200 mm |
| Dimension L | 80 mm |
| Dimension x | 96 mm |
| Dimension y | 162 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,25 kN/m |
| Support spacing 2.5 m | 1,58 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 11800 mm² |
| Usable cross-section | 118 cm² |
| Wide-span version | no |
| Width | 200 mm |
| With cover | no |
