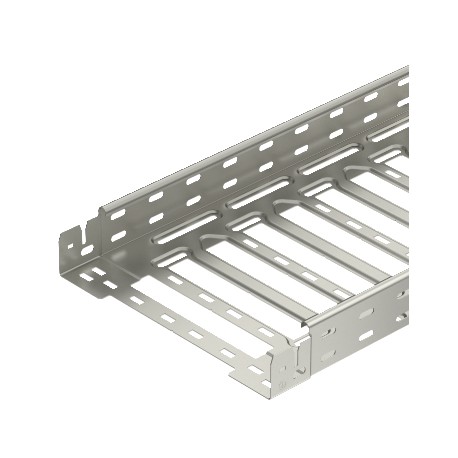

6059507 OBO BETTERMANN TRAY SKSMAGIC 610 VA4571
SKSM 610 VA4571
6059507
OBO BETTERMANN
3 Pcs.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
6059507 OBO BETTERMANN TRAY SKSMAGIC 610 VA4571 is a stainless steel cable management channel utilized to support, guide, and protect wiring systems in harsh or corrosive industrial environments. High-grade metal trays ensure structural integrity and longevity in demanding plant configurations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 14,0605 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 60x100x3050
- Dimension B: 100 mm
- Dimension L: 30 mm
- Dimension y: 62 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
- Mounting perforation in base: yes
- NATO hole pattern: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 14,0605 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x100x3050 |
| Dimension B | 100 mm |
| Dimension L | 30 mm |
| Dimension y | 62 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,25 kN/m |
| Support spacing 2.5 m | 1,58 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 58 cm² |
| Usable cross-section | 5800 mm² |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
