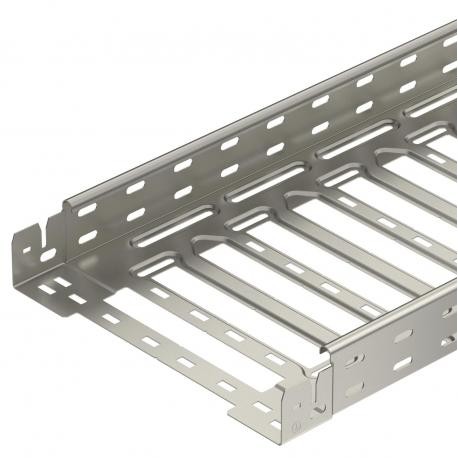

OBO BETTERMANN SKSM 610 A2 6059490 OBO BETTERMANN TRAY SKSMAGIC 610 VA4301 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6059490 OBO BETTERMANN TRAY SKSMAGIC 610 VA4301

SKSM 610 A2

6059490

OBO BETTERMANN

3 m.

TRAY SKSMAGIC 610 VA4301 Cable tray SKS-Magic® 60 A2. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed from stainless steel 1.4301, the Obo Bettermann SKSM 610 A2 cable tray provides exceptional corrosion resistance while organizing electrical wiring runs. Cable trays form the backbone of safe commercial and industrial electrical distribution setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 14,0803 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Integrated connector
  • Dimension: 60x100x3050
  • Dimension B: 100 mm
  • Dimension L: 30 mm
  • Dimension y: 62 mm
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Mounting perforation in base: yes
  • NATO hole pattern: no

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate14,0803 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension60x100x3050
Dimension B100 mm
Dimension L30 mm
Dimension y62 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialStainless steel 1.4301
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.5 m3 kN/m
Support spacing 2.0 m2,25 kN/m
Support spacing 2.5 m1,58 kN/m
Support spacing 3.0 m1 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section5800 mm²
Usable cross-section58 cm²
Wide-span versionno
Width100 mm
With coverno
