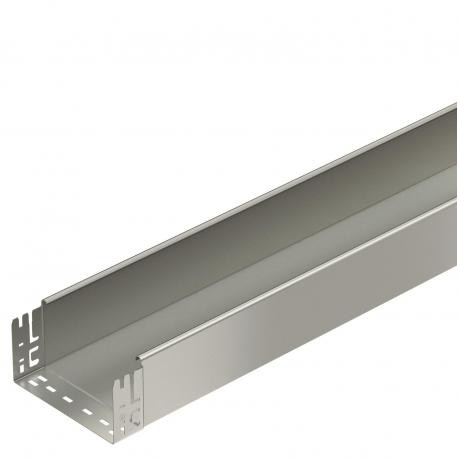

6059420 OBO BETTERMANN TRAY MKSMAGIC BLIND 120 VA4301
MKSMU 120 A2
6059420
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The MKSMU 120 A2 from Obo Bettermann is a stainless steel unperforated cable tray utilized for heavy-duty cable containment in corrosive or demanding environments. Enclosed metal trays protect sensitive cables from environmental exposure and physical damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 19,2181 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 110x200x3050
- Dimension B: 200 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 1,85 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 19,2181 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 110x200x3050 |
| Dimension B | 200 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,85 kN/m |
| Support spacing 2.0 m | 1,3 kN/m |
| Support spacing 2.5 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 218 cm² |
| Usable cross-section | 21800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 200 mm |
| With cover | no |
