6059198 OBO BETTERMANN TRAY MKSMAGIC 140 VA4301
MKSM 140 A2
6059198
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

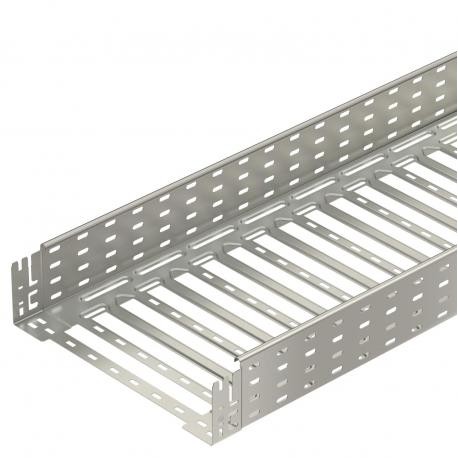

6059198 OBO BETTERMANN TRAY MKSMAGIC 140 VA4301 is a stainless steel perforated cable tray engineered for organizing and supporting electrical lines in environments requiring corrosion resistance. Perforated trays secure numerous parallel cables while permitting adequate ventilation along plant routing paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 24,695 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 110x400x3050
- Dimension B: 400 mm
- Dimension L: 280 mm
- Dimension x: 296 mm
- Dimension y: 362 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 24,695 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 110x400x3050 |
| Dimension B | 400 mm |
| Dimension L | 280 mm |
| Dimension x | 296 mm |
| Dimension y | 362 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,45 kN/m |
| Support spacing 2.0 m | 1,2 kN/m |
| Support spacing 2.5 m | 0,95 kN/m |
| Support spacing 3.0 m | 0,7 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 43800 mm² |
| Usable cross-section | 438 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
