OBO BETTERMANN MKSM 120 A2 MKSM 120 A2 6059194 OBO BETTERMANN TRAY MKSMAGIC 120 VA4301 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSM 120 A2 6059194 OBO BETTERMANN TRAY MKSMAGIC 120 VA4301

MKSM 120 A2

6059194

OBO BETTERMANN

3 m.

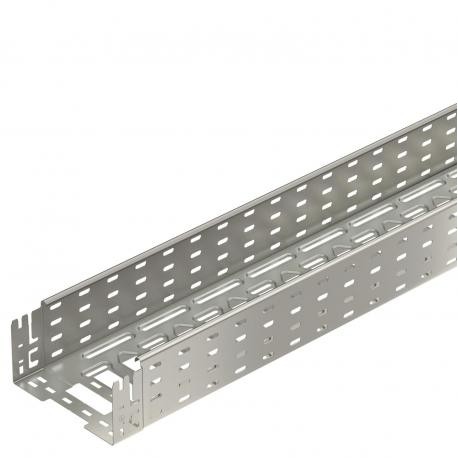

TRAY MKSMAGIC 120 VA4301 MKSM MKSM 120 A2 cable tray, perforated, with needle. 110x200x3050 Stainless steel 1.4301, A2, 1.4301, Polished, with post-treatment MKS-Magic® 110 A2 cable tray. Cable tray with integrated quick fixing system. The usable length of the cable tray is 3,000 mm.La cable tray has a continuous side perforation of 7 x 20 mm for the installation of additional joining and mounting components. From a tray width of 200 mm, with 30% perforation percentage, suitable according to the VdS 2092 standard for use under fire sprinkler systems.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Medium-duty cable routing is optimized with the Obo Bettermann MKSM 120 A2 perforated cable tray, which includes an integrated quick-connection mechanism. Perforations allow air circulation around power and control cables while stainless steel construction withstands aggressive industrial cleaning. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Part number: MKSM 120 A2
  • Catalogue code: 6059194

More info

▲
MKSM 110 = medium-duty Magic cable tray system with a side height of 110 mm
