6052029 OBO BETTERMANN LID WITH SCREW DRL 075 FS
DRL 075 FS
6052029
OBO BETTERMANN
3 Pcs.

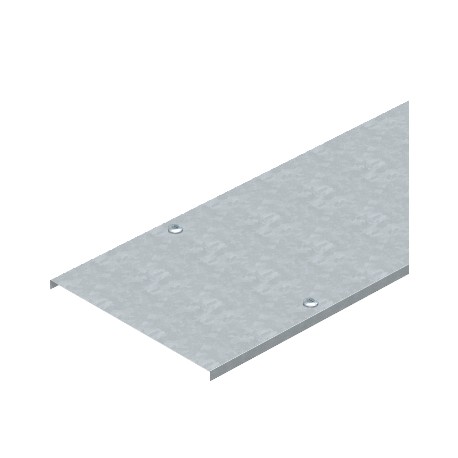

LID WITH SCREW DRL 075 FS
Cover with turn buckle FS. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This lid with screw component from Obo Bettermann provides secure, reliable closure for cable runs, ensuring that electrical wiring systems remain fully shielded against environmental factors and physical hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,2937 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 75x3000
- Dimension B: 75 mm
- Dimension H: 15 mm
- Fastening type: Sash lock
- Height: 35 mm
- Length: 3000 mm
- Maintain electrical functions: yes
- Material: Steel
- Number of turn buckles: 6 St.
- Plate thickness: 0,03 in
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: yes
- Suitable for cable tray: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,2937 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 75x3000 |
| Dimension B | 75 mm |
| Dimension H | 15 mm |
| Fastening type | Sash lock |
| Height | 35 mm |
| Length | 3000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Number of turn buckles | 6 St. |
|---|---|
| Plate thickness | 0,03 in |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Width | 75 mm |
| Width | 3 in |
