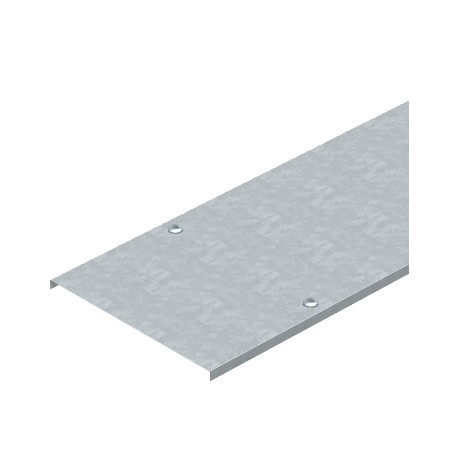

OBO BETTERMANN DRL 600 FT 6051472 OBO BETTERMANN LID WITH SCREW DRL 600 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6051472 OBO BETTERMANN LID WITH SCREW DRL 600 FT

DRL 600 FT

6051472

OBO BETTERMANN

3 Pcs.

LID WITH SCREW DRL 600 FT Cover with turn buckle FT. Cover for cable trays and cable ladders with three pairs of turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.

Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number DRL 600 FT is a lid with a screw mechanism for cable trays and cable ladders. Such covers provide an extra layer of structural protection for large cabling systems installed in industrial areas.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 16,4766 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 600x3000
  • Dimension B: 600 mm
  • Fastening type: Sash lock
  • Height: 13 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Number of turn buckles: 6 St.
  • Plate thickness: 1,5 mm
  • Plate thickness: 0,06 in
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes
  • Suitable for mesh cable tray: no

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate16,4766 kg CO2e / 1 Meter
Colourzinc
Dimension600x3000
Dimension B600 mm
Fastening typeSash lock
Height13 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Number of turn buckles6 St.
Plate thickness1,5 mm
Plate thickness0,06 in
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Width600 mm
Width24 in
