View larger
Images are for illustrative purposes only. Please refer to data sheet for details

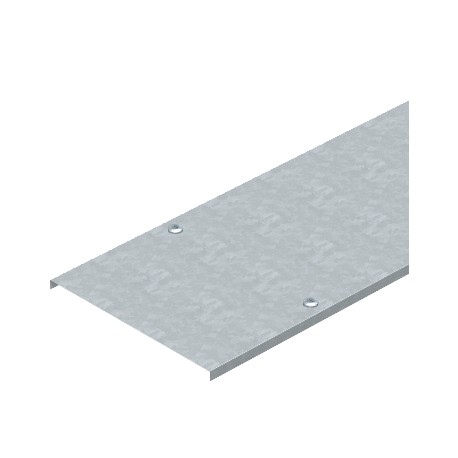

6051448 OBO BETTERMANN LID WITH SCREW DRL 500 FT
DRL 500 FT
6051448
OBO BETTERMANN
3 Pcs.
LID WITH SCREW DRL 500 FT
Cover with turn buckle FT. Cover for cable trays and cable ladders with three pairs of turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,8723 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 500x3000 |
| Dimension B | 500 mm |
| Fastening type | Sash lock |
| Height | 13 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Number of turn buckles | 6 St. |
| Plate thickness | 0,06 in |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Hot-dip galvanised |
| Width | 500 mm |
| Width | 20 in |
