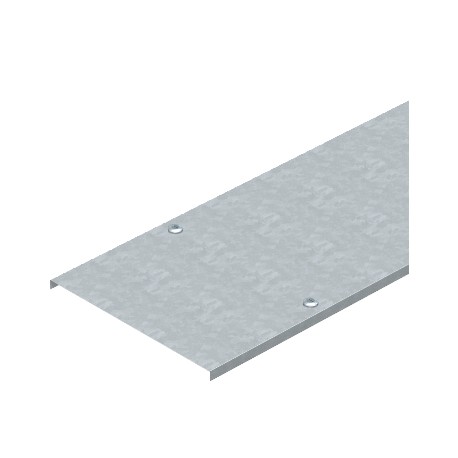

OBO BETTERMANN DRL 100 FT DRL 100 FT 6051340 OBO BETTERMANN LID WITH SCREW DRL 100 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRL 100 FT 6051340 OBO BETTERMANN LID WITH SCREW DRL 100 FT

DRL 100 FT

6051340

OBO BETTERMANN

3 Pcs.

LID WITH SCREW DRL 100 FT Screw cover DRL 100 FT p/band.porta.y band.de esc. 100x3000 zinc Steel, St Hot dip galvanized, DIN EN ISO 1461 Cover with turn buckle FT. Cover for cable trays and cable ladders with three pairs of turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.

Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann DRL 100 FT is a lid with screw fastening for cable trays and ladders. Protective lids enclose electrical raceways to maintain clean routing channels and protect wiring infrastructure from environmental hazards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,5117 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 100x3000
  • Dimension B: 100 mm
  • Fastening type: Sash lock
  • Height: 13 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Number of turn buckles: 6 St.
  • Plate thickness: 0,03 in
  • Plate thickness: 1 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes
  • Suitable for mesh cable tray: no

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,5117 kg CO2e / 1 Meter
Colourzinc
Dimension100x3000
Dimension B100 mm
Fastening typeSash lock
Height13 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Number of turn buckles6 St.
Plate thickness0,03 in
Plate thickness1 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Width100 mm
Width4 in
