View larger
Images are for illustrative purposes only. Please refer to data sheet for details

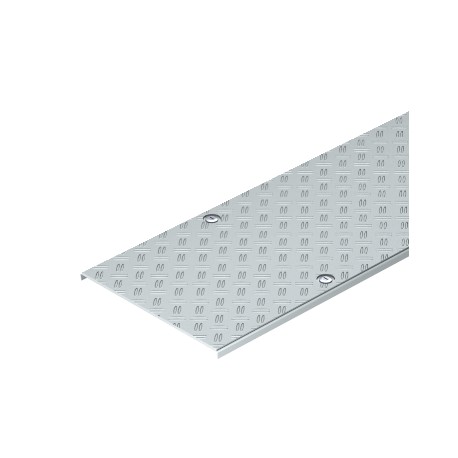

6049189 OBO BETTERMANN CAP RIBBED DF BKR50 FS TO THE
DF BKR50 FS AL
6049189
OBO BETTERMANN
3 Pcs.
CAP RIBBED DF BKR50 FS TO THE
Cover with chequer plate and turn buckle FS. Cable tray cover for the walkable BKRS cable tray system. The basic cover is strip galvanised in a material thickness of 2 mm with additional aluminium chequer riveted on in a thickness of 4 mm, sturdy and non-slip. Turn buckle fastening with a turn buckle distance of 500 mm.When the cover is used under wind, draught or pressure impacts, additional security measures are required.
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 97,5256 kg CO2e / 1 Meter |
|---|---|
| Colour | aluminium |
| Dimension | 500x3000 |
| Dimension B | 500 mm |
| Dimension L | 3000 mm |
| Fastening type | Sash lock |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Aluminium/Steel |
| Number of turn buckles | 14 St. |
|---|---|
| Plate thickness | 6 mm |
| Plate thickness | 0,24 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Width | 500 mm |
| Width | 20 in |
