6049185 OBO BETTERMANN CAP RIBBED DF BKR30 FS TO THE
DF BKR30 FS AL
6049185
OBO BETTERMANN
3 Pcs.
CAP RIBBED DF BKR30 FS TO THE

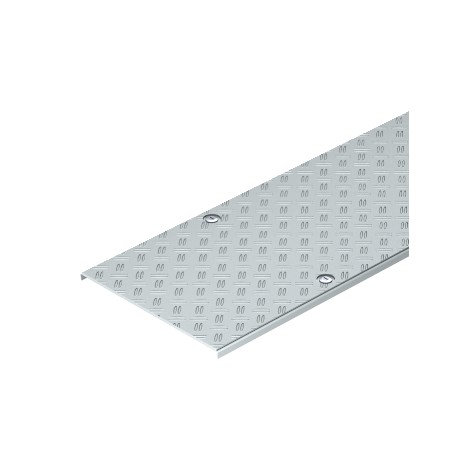

Cover with chequer plate and turn buckle FS. Cable tray cover for the walkable BKRS cable tray system. The basic cover is strip galvanised in a material thickness of 2 mm with additional aluminium chequer riveted on in a thickness of 4 mm, sturdy and non-slip. Turn buckle fastening with a turn buckle distance of 500 mm.When the cover is used under wind, draught or pressure impacts, additional security measures are required.
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann DF BKR30 FS AL is a ribbed cap designed for industrial cable management pathways. Such parts seal off open profile ends and protect cable insulation from abrasion against sharp metallic edges.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 49,0491 kg CO2e / 1 Meter
- Colour: aluminium
- Dimension: 300x3000
- Dimension B: 300 mm
- Dimension L: 3000 mm
- Fastening type: Sash lock
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Aluminium/Steel
- Number of turn buckles: 14 St.
- Plate thickness: 0,24 in
- Plate thickness: 6 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: no
- Suitable for cable tray: yes
- Suitable for mesh cable tray: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 49,0491 kg CO2e / 1 Meter |
|---|---|
| Colour | aluminium |
| Dimension | 300x3000 |
| Dimension B | 300 mm |
| Dimension L | 3000 mm |
| Fastening type | Sash lock |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Aluminium/Steel |
| Number of turn buckles | 14 St. |
|---|---|
| Plate thickness | 0,24 in |
| Plate thickness | 6 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Width | 300 mm |
| Width | 12 in |
