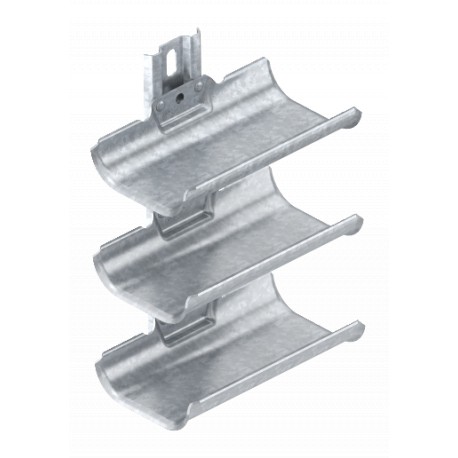

OBO BETTERMANN KTW 100 10 FT 6006910 OBO BETTERMANN MEDIACAÑA 10 LINES View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6006910 OBO BETTERMANN MEDIACAÑA 10 LINES

KTW 100 10 FT

6006910

OBO BETTERMANN

1 Pcs.

MEDIACAÑA 10 LINES Cable support trough, 10x, with fastening rail. Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann KTW 100 10 FT 6006910 OBO BETTERMANN MEDIACAÑA 10 LINES facilitates organized cable routing and separation within industrial electrical installations. Troughs and raceways protect distribution lines from friction and physical damage across complex facility layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 15,5656 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 1000x200x123
  • Dimension L: 1000 mm
  • F in kN per trough: 0,5 kN
  • Height: 1000 mm
  • Length: 198 mm
  • Material: Steel
  • Number of troughs: 10 St.
  • Plate thickness: 2 mm
  • Surface: Hot-dip galvanised
  • Width: 122 mm

More info

▲
Adjustableno
CO2 Footprint (GWP) Cradle-to-Gate15,5656 kg CO2e / 1 Piece
Colourzinc
Dimension1000x200x123
Dimension L1000 mm
F in kN per trough0,5 kN
Height1000 mm
Length198 mm
MaterialSteel
Number of troughs10 St.
Plate thickness2 mm
SurfaceHot-dip galvanised
Width122 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
