6006904 OBO BETTERMANN MEDIACAÑA 4 LINES
KTW 100 4 FT
6006904
OBO BETTERMANN
1 Pcs.
MEDIACAÑA 4 LINES

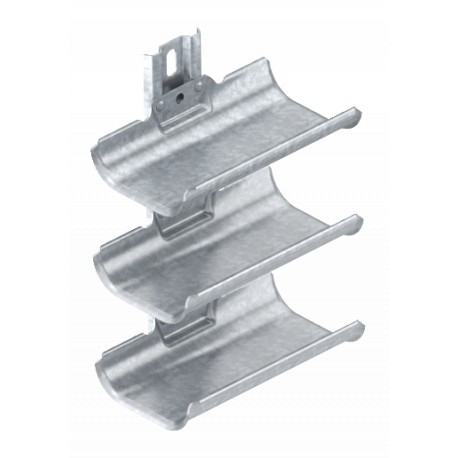

Cable support trough, 4x, with fastening rail. Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Adjustable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 6,1569 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 400x200x123 |
| Dimension L | 400 mm |
| F in kN per trough | 0,5 kN |
| Height | 400 mm |
| Length | 198 mm |
|---|---|
| Material | Steel |
| Number of troughs | 4 St. |
| Plate thickness | 2 mm |
| Surface | Hot-dip galvanised |
| Width | 122 mm |
