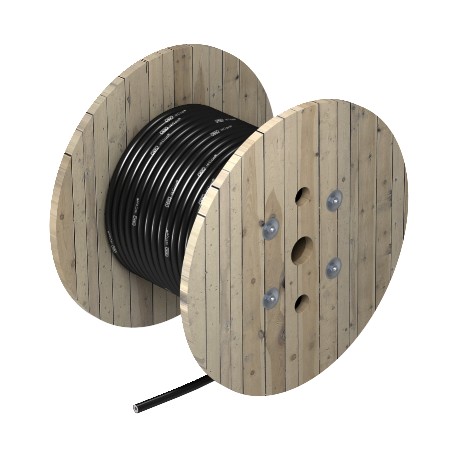

OBO BETTERMANN isCon Pro+ 75 SW 5408006 OBO BETTERMANN DERIVATION isCon 750 SW (250M) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5408006 OBO BETTERMANN DERIVATION isCon 750 SW (250M)

isCon Pro+ 75 SW

5408006

OBO BETTERMANN

250 m.

DERIVATION isCon 750 SW (250M) isCon® conductor, Professional plus black. Please refer to the mounting instructions for information on routing the OBO isCon® conductor.• Highly voltage-resistant, insulated conductor• Floating discharge-free• Additional mechanical protection (black protective jacket)• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 (solid material)• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)• Halogen-free• Fire load 4.3 kWh/m• Can be used in potentially explosive areas Ex zone 1/2 and 21/22 when taking the current mounting instructions into account

Automation > Air-termination equipment for lightning protection
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ColourBlack
Cross-section35 mm²
Diameter23 mm
DimensionØ23mm
Equivalent separating distance s(e)/m (in air)0,75
High voltage-resistant, insulated versionyes
Length tolerance ±5 %
Material jacketEVA
Material propertyMiscellaneous
Nomal ring (approx. m)250
Number of individual wires7

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
