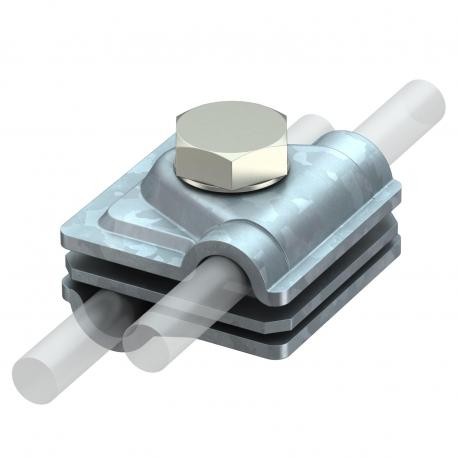

OBO BETTERMANN 249 6-10 ST 5311410 OBO BETTERMANN QUICK CONNECTOR 249 6-10 ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5311410 OBO BETTERMANN QUICK CONNECTOR 249 6-10 ST

249 6-10 ST

5311410

OBO BETTERMANN

20 Pcs.

QUICK CONNECTOR 249 6-10 ST Variable earthing connector Rd 6-8/8-10 mm FT. • For T, cross-over and parallel connections with adapter plates• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel• With sprung washer to DIN 137• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for fast installation, this Obo Bettermann quick connector 249 6-10 ST acts as a multipurpose connection clamp in industrial earthing and lightning protection networks. Such hardware simplifies the routing of metallic conductors to safeguard equipment and structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,4324 kg CO2e / 1 Piece
  • Dimension: 40x40mm
  • Dimension A: 40 mm
  • Fit: RD 6-8 / 8-10 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Round conductor diameter, conductor 1, max.: 8 mm
  • Round conductor diameter, conductor 1, min.: 6 mm
  • Round conductor diameter, conductor 2, max.: 10 mm
  • Round conductor diameter, conductor 2, min.: 8 mm
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Surface: Hot-dip galvanised
  • Type of connector: Multipurpose connection clamp
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,4324 kg CO2e / 1 Piece
Dimension40x40mm
Dimension A40 mm
FitRD 6-8 / 8-10 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialSteel
Round conductor diameter, conductor 1, max.8 mm
Round conductor diameter, conductor 1, min.6 mm
Round conductor diameter, conductor 2, max.10 mm
Round conductor diameter, conductor 2, min.8 mm
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
SurfaceHot-dip galvanised
Type of connectorMultipurpose connection clamp
Type of fastening screwHexagonal bolt
