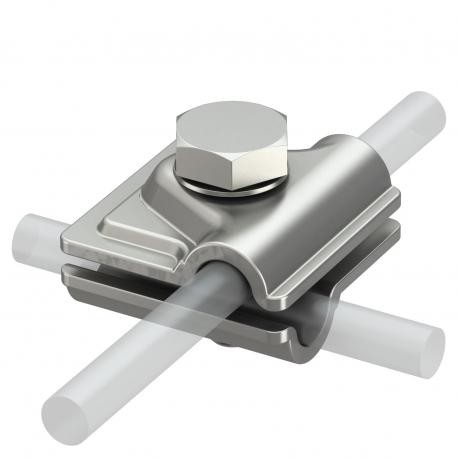

OBO BETTERMANN 249 8-10 V4A 5311404 OBO BETTERMANN QUICK CONNECTOR 249 8-10 V4A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5311404 OBO BETTERMANN QUICK CONNECTOR 249 8-10 V4A

249 8-10 V4A

5311404

OBO BETTERMANN

10 Pcs.

QUICK CONNECTOR 249 8-10 V4A Vario quick connector A4. • For T, cross-over and parallel connections• Complete component made of A4• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel• Meets the requirements of VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann quick connector 249 8-10 V4A provides swift and secure attachment for round conductors within corrosion-resistant grounding systems. Quick connectors speed up installation workflows while ensuring dependable electrical continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,6844 kg CO2e / 1 Piece
  • Connection: Round conductor
  • Dimension: 40x40mm
  • Dimension A: 40 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Length: 40 mm
  • Lightning current carrying capacity: H/100 kA
  • Material: Stainless steel 1.4571/1.4404
  • Round conductor diameter, conductor 1, max.: 10 mm
  • Round conductor diameter, conductor 1, min.: 8 mm
  • Round conductor diameter, conductor 2, max.: 10 mm
  • Round conductor diameter, conductor 2, min.: 8 mm
  • Short-circuit current (50 HZ)(1 s;≤300°C): 1,4 kA
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • TBS application: Connection system

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,6844 kg CO2e / 1 Piece
ConnectionRound conductor
Dimension40x40mm
Dimension A40 mm
FitRd 8-10 mm
Intermediate plateno
Length40 mm
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4571/1.4404
Round conductor diameter, conductor 1, max.10 mm
Round conductor diameter, conductor 1, min.8 mm
Round conductor diameter, conductor 2, max.10 mm
Round conductor diameter, conductor 2, min.8 mm
Short-circuit current (50 HZ)(1 s;≤300°C)1,4 kA
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
TBS applicationConnection system
Type of connectorMultipurpose connection clamp
Type of fastening screwHexagonal bolt
