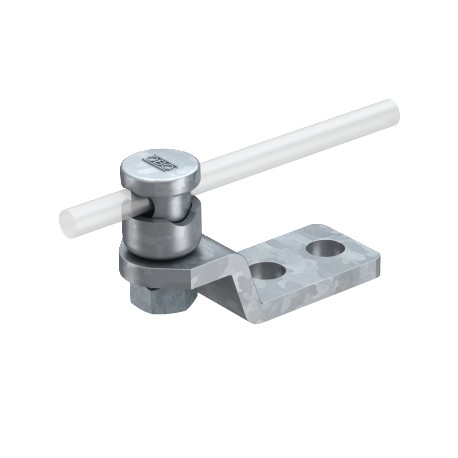

OBO BETTERMANN 5005 N-FT 5304660 OBO BETTERMANN TERMINAL 5005 N-FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5304660 OBO BETTERMANN TERMINAL 5005 N-FT

5005 N-FT

5304660

OBO BETTERMANN

10 Pcs.

TERMINAL 5005 N-FT Connection and end piece with connector and pressure trough. • With 2 attaching holes Ø 11 mm• Including pre-mounted connector 5001 N• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An end piece serves as a protective and terminating fitting at the dead-ends of conductor lines within an industrial earthing or lightning protection installation. It caps exposed elements and maintains uniform system integrity across exterior structural arrays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,378 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Miscellaneous
  • Surface: Hot-dip galvanised
  • Type of connector: End piece
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,378 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionMiscellaneous
SurfaceHot-dip galvanised
Type of connectorEnd piece
Type of fastening screwHexagonal bolt
