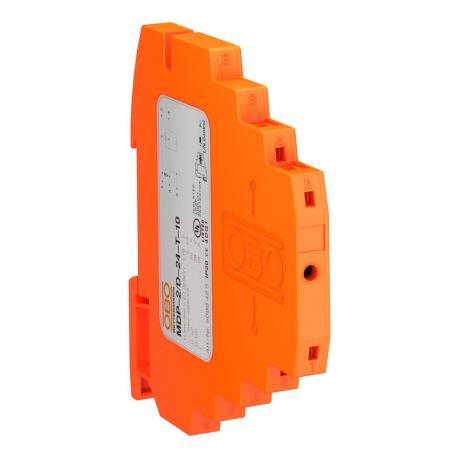

OBO BETTERMANN MDP-2 D-24-T-10 MDP-2 D-24-T-10 5098425 OBO BETTERMANN ARRESTER MDP-2 D-24-T-10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MDP-2 D-24-T-10 5098425 OBO BETTERMANN ARRESTER MDP-2 D-24-T-10

MDP-2 D-24-T-10

5098425

OBO BETTERMANN

1 Pcs.

ARRESTER MDP-2 D-24-T-10 MDP-2 D-24-T-10.2 pole high capacity 24V surge arrester, Series protection device, 2-pole, 24 V version. Surge arrester with test function; 24 V version • Nominal load current 10 A• Protection device for multi-core systems• Direct shield grounding and screwless terminal blocks• Space-saving thanks to a width of only 8.7 mm • Controllable protection circuit with Life Control• High bandwidth up to 100 MHz• UL certified (4DG1) Application: Universal use on 35 mm DIN rail of any conventional control cabinet.

Automation > Surge protection device for data networks/MCR-technology
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann arrester MDP-2 D-24-T-10 is a heavy-duty 24V surge protection device engineered to safeguard industrial control instrumentation from damaging electrical surges. Multi-wire instrumentation loops rely on these compact series protectors to safely shunt transient energy away from automation controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: MDP-2 D-24-T-10
  • Catalogue code: 5098425

More info

▲
MP... D-24-T-10: Lightning barrier with test function; 24 V version

• Rated load current 10 To
• Protection device for multi-wire systems
• Direct shield earthing and screwless connection terminals
• Space-saving width of just 8.7 mm
• Protection circuit testable with Life Control
• High bandwidth to 100 MHz
• UL-listed (4DG1)

Application: Universal use on 35 mm DIN profile rail in any standard distribution housing.
