MDP-4 D-5-EX

5098412

OBO BETTERMANN

1 Pcs.

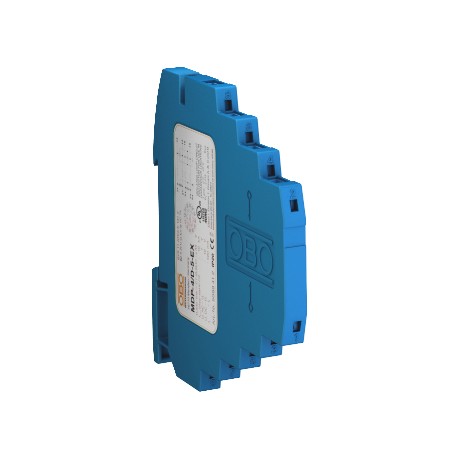

DOWNLOADER-EX MDP-4 D-5-EX Series protection device, 4-pole, 5 V version. Lightning barrier for intrinsically safe measuring circuits • Protection device for multi-wire systems• Direct shield earthing and screwless connection terminals• Space-saving width of just 8.7 mm • High frequency range of 0‒100 MHz• ATEX approval: II 2(1) G Ex ia [ia Ga] IIC T4 (BVS 11 ATEX E 131 X)• UL-listed (4UM2)Application: Universal use on 35 mm DIN profile rail in any standard distribution housing.

Automation > Surge protection device for data networks/MCR-technology
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Multi-channel surge protection barriers like the Obo Bettermann MDP-4 D-5-EX provide intrinsically safe transient protection for measurement and control signals operating in hazardous, explosion-prone industrial environments. These modular devices limit electrical energy transmitted into explosive atmospheres, safeguarding field instruments and control systems from lightning strikes and switching surges.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Approvals: UL
  • Arrestor monitoring: no
  • Capacity (wire-wire): < 40 pF
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1887 kg CO2e / 1 Piece
  • Colour: Blue
  • Connection cross-section, flexible, max.: 2,5 mm²
  • Connection cross-section, flexible, min.: 0,14 mm²
  • Connection cross-section, multi-wire, max.: 1,5 mm²
  • Connection cross-section, multi-wire, min.: 0,14 mm²
  • Connection cross-section, rigid, max.: 2,5 mm²
  • Connection cross-section, rigid, min.: 0,14 mm²
  • Cut-off frequency: 100 MHz
  • Dimension: 5V
  • Earthing via:: DIN rail
  • EX approval: II 2(1)G Ex ia [ia Ga] IIC T4 Gb
  • Impulse durability wire-earth: C2: 5 KV / 2,5 kA (8/20µs)

More info

▲
ApprovalsUL
Arrestor monitoringno
Capacity (wire-wire)< 40 pF
CO2 Footprint (GWP) Cradle-to-Gate0,1887 kg CO2e / 1 Piece
ColourBlue
Connection cross-section, flexible, max.2,5 mm²
Connection cross-section, flexible, min.0,14 mm²
Connection cross-section, multi-wire, max.1,5 mm²
Connection cross-section, multi-wire, min.0,14 mm²
Connection cross-section, rigid, max.2,5 mm²
Connection cross-section, rigid, min.0,14 mm²
Cut-off frequency100 MHz
Dimension5V
Earthing via:DIN rail
EX approvalII 2(1)G Ex ia [ia Ga] IIC T4 Gb
Impulse durability wire-earthC2: 5 KV / 2,5 kA (8/20µs)
Impulse durability wire-wireC1: 0,5 KV / 0,25 kA (8/20µs)
Insertion loss≤3 dB
Insulation resistance>100 MΩ
KategorieType 1+2+3 / D1+C2+C1
Lightning protection zone LPZ0→3
Maximum continuous voltage AC7 V
Maximum continuous voltage DC10 V
Nominal load current AC0,4 A
Nominal load current DC0,58 A
Nominal voltage5 V
Number of poles4
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemTerminal
Protection level wire-earth<800 V
Protection level wire-wire< 35 V
Protection ratingIP20
ScreeningDirect
Series resistance per wire2,35 Ω ± 5 %
Shielding connection availableyes
Signalling on deviceNone
SPD to IEC 61643-21Class I+II+III / D1+C2+C1
Telecommunications contactno
Testing standardIEC 61643-21
Total discharge current (10/350)D1: 2 kA
Total discharge current (8/20)10 kA
