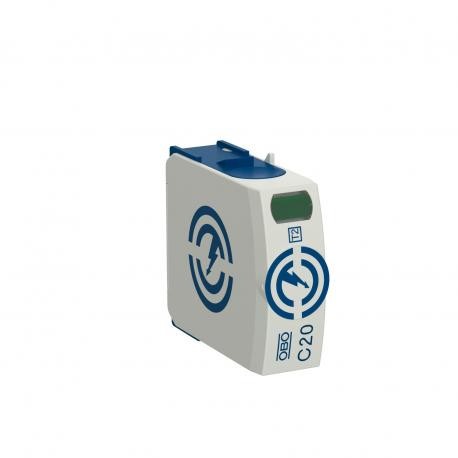

5095600 OBO BETTERMANN VIA SPARK-C20-0-255
C20-0-255
5095600
OBO BETTERMANN
1 Pcs.
VIA SPARK-C20-0-255
Plug-in arrester C20. N-PE surge arrester, type 2• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors• Modular connectable arrester with dynamic cut-off unit and visual status display • Locking mechanism with vibration protection and voltage keying • Plastic (UL 94 V-0)Application: Equipotential bonding in main and sub-distributors.
Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Approvals | VDE, KEMA, UL, ÖVE |
|---|---|
| Blow-out | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2585 kg CO2e / 1 Piece |
| Dimension | 255V |
| Follow current quenching capacity (eff) [N-PE] | 0,1 kA |
| Housing material surge protection components | PA UL 94 V-0 |
| Installation type | On basic element |
| Integrated back-up fuse | no |
| Maximum continuous voltage (N-PE) | 255 V |
| Maximum continuous voltage AC | 255 V |
| Maximum discharge current (8/20 μs) | 40 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 60 kA |
| Minimum distance | 1,5 mm |
| Network form | Other |
| Nominal discharge current (8/20 µs) | 20 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 40 kA |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Pole number | 1 |
| Pole version | N/PE |
| Protection rating | IP20 |
| Remote signalling | no |
| Short-circuit resistant | yes |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 2 |
| SPD to IEC 61643-1 | Class II |
| SPD to UL 1449 | Type 4 |
| Switching power AC | 230 V; 0,5 A |
| Switching power DC | 230 V; 0,1 A / 75 V; 0,5 A |
| Test class, type 2 | yes |
| Torque | 4 Nm |
| TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms | 1200 V |
