5095381 OBO BETTERMANN DESCRG. T. 2 V20-1+NPE-280 N/BOX
VG-V20-1+NPE-280
5095381
OBO BETTERMANN
1 Pcs.
Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

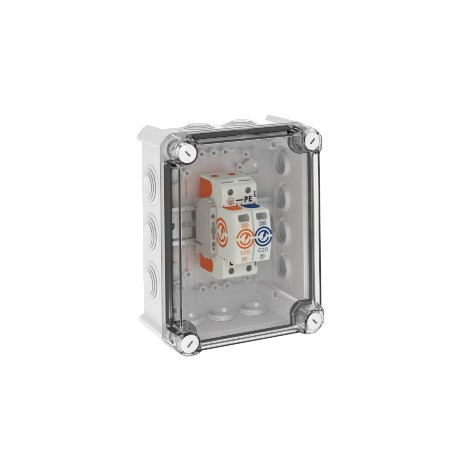

Supplied in a protective enclosure, the 5095381 OBO BETTERMANN DESCRG. T. 2 V20-1+NPE-280 N/BOX is a type 2 surge arrester unit built for surface-mounted electrical protection applications. Devices of this category are commonly utilized where standard DIN rail mounting inside an existing panel requires an external housing solution. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Approvals: UL, ÖVE
- Arrester surge current (8/20 µs) [total]: 60 kA
- CO2 Footprint (GWP) Cradle-to-Gate: 3,509 kg CO2e / 1 Piece
- Conductor cross-section, flexible (fine-wire), max.: 35 mm²
- Conductor cross-section, flexible (fine-wire), max.: 2 AWG
- Conductor cross-section, flexible (fine-wire), min.: 16 AWG
- Conductor cross-section, flexible (fine-wire), min.: 1,5 mm²
- Conductor cross-section, rigid (single-wire/multiwire), max.: 35 mm²
- Conductor cross-section, rigid (single-wire/multiwire), max.: 2 AWG
- Conductor cross-section, rigid (single-wire/multiwire), min.: 1,5 mm²
- Conductor cross-section, rigid (single-wire/multiwire), min.: 16 AWG
- Connection cross-section, FM terminals, max.: 1,5 mm²
- Connection cross-section, FM terminals, max.: 16 AWG
- Connection cross-section, FM terminals, min.: 0,5 mm²
- Connection cross-section, FM terminals, min.: 21 AWG
- Dimension: 280V
More info
▲| Approvals | UL, ÖVE |
|---|---|
| Arrester surge current (8/20 µs) [total] | 60 kA |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,509 kg CO2e / 1 Piece |
| Conductor cross-section, flexible (fine-wire), max. | 35 mm² |
| Conductor cross-section, flexible (fine-wire), max. | 2 AWG |
| Conductor cross-section, flexible (fine-wire), min. | 16 AWG |
| Conductor cross-section, flexible (fine-wire), min. | 1,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 35 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 2 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 1,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 16 AWG |
| Connection cross-section, FM terminals, max. | 1,5 mm² |
| Connection cross-section, FM terminals, max. | 16 AWG |
| Connection cross-section, FM terminals, min. | 0,5 mm² |
| Connection cross-section, FM terminals, min. | 21 AWG |
| Dimension | 280V |
| Follow current quenching capacity (eff) [N-PE] | 0,1 kA |
| Installation type | Pre-mounted in the housing |
| Integrated back-up fuse | no |
| Max. mains-side overcurrent protection | 160 A gL/gG |
| Maximum back-up fuse | 160 A |
| Maximum continuous voltage (L-N) | 280 V |
| Maximum continuous voltage (N-PE) | 255 V |
| Maximum continuous voltage AC | 280 V |
| Maximum continuous voltage DC | 350 V |
| Maximum discharge current (8/20 μs) | 40 kA |
| Maximum discharge current (8/20 μs) [L-N] | 40 kA |
| Minimum distance | 1,5 mm |
| Network form | Other |
|---|---|
| Nominal discharge current (8/20 µs) | 20 kA |
| Nominal discharge current (8/20 µs) [L-N] | 20 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 40 kA |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Pole version | 1+N/PE |
| Protection level [L-N] | ≤1,3 |
| Protection rating | IP66 |
| Remote signalling | no |
| Residual voltage [L-N] @ 1 kA | 0,7 kV |
| Residual voltage [L-N] @ 5 kA | 0,9 kV |
| Response time | <25 ns |
| Short-circuit resistance for max. mains-side overcurrent protection | 50 kA eff |
| Short-circuit resistant | yes |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 2 |
| SPD to IEC 61643-1 | Class II |
| SPD to UL 1449 | Type 4 |
| Test class, type 2 | yes |
| Torque | 4 Nm |
| TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. | 440 V |
| TOV voltage [L-N] ‒ withstand mode ‒ 5 s | 335 V |
| TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms | 1200 V |
