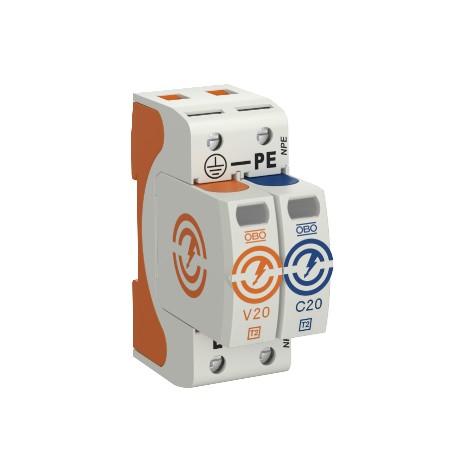

OBO BETTERMANN V20-1+NPE-385 V20-1+NPE-385 5095271 OBO BETTERMANN DOWNLOADER T. 2 V20-1+NPE-385 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V20-1+NPE-385 5095271 OBO BETTERMANN DOWNLOADER T. 2 V20-1+NPE-385

V20-1+NPE-385

5095271

OBO BETTERMANN

1 Pcs.

DOWNLOADER T. 2 V20-1+NPE-385 Surge Arrester V20 V20-1+NPE-385.1 pole with NPE 385V,

Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for multi-phase electrical networks, the Obo Bettermann V20-1+NPE-385 type 2 surge downloader protects sensitive equipment from high-voltage electrical surges. Surge arresters are deployed in power distribution enclosures to divert transient energy safely to the ground and prevent costly equipment failure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN (EF009928): Yes
  • System configuration TN-C-S (EF009933): Yes
  • System configuration TN-S (EF009930): Yes
  • System configuration TT (EF009931): Yes
  • Nominal discharge surge current (8/20) (EF004214): 20 kA
  • Max. discharge surge current (8/20) (EF012274): 40 kA
  • Nominal voltage AC (EF004220): 350 V
  • Max. continuous voltage AC (EF004198): 385 V
  • Voltage protection level (EF003525): 1.7 kV
  • Voltage protection level L-N (EF004236): 1.7 kV
  • Integrated backup fuse (EF008797): No
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Construction size (EF002566): 2 modular spacing
  • Signalling at the device (EF004241): Optic
  • Category type 2 (EF004230): Yes
  • Degree of protection (IP) (EF005474): IP20

More info

▲
Surge arrestor, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors
• Modular connectable arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.
