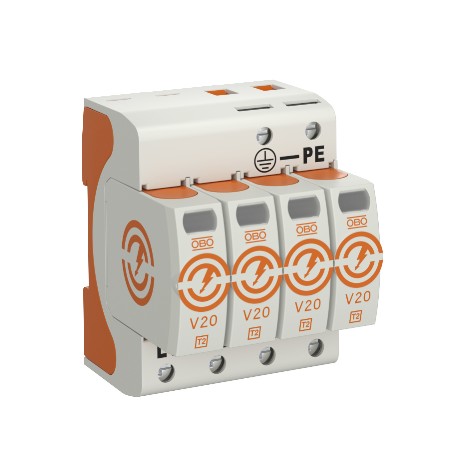

OBO BETTERMANN V20-4-550 5095214 OBO BETTERMANN DOWNLOADER T. 2 V20-4-550 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5095214 OBO BETTERMANN DOWNLOADER T. 2 V20-4-550

V20-4-550

5095214

OBO BETTERMANN

1 Pcs.

DOWNLOADER T. 2 V20-4-550 Surge arrester V20, 4-pole, 550 V. Surge arrester, type 2• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors • Modular connectable arrester with cut-off unit and visual status display • Locking mechanism with vibration protection and voltage keying • Plastic to UL 94 V-0• The remote signalling variants (FS) have a potential-free changeover contact for remote signallingApplication: Equipotential bonding in main and sub-distributions.

Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann downloader t. 2 V20-4-550 acts as a multi-pole defense mechanism against excessive transient voltages within industrial electrical distribution networks. Usually deployed near incoming power feeds, this surge suppression device absorbs and redirects dangerous electrical energy before it reaches vulnerable end-use equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Approvals: UL
  • Arrester surge current (8/20 µs) [total]: 160 kA
  • Blow-out: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,025 kg CO2e / 1 Piece
  • Conductor cross-section, flexible (fine-wire), max.: 2 AWG
  • Conductor cross-section, flexible (fine-wire), max.: 35 mm²
  • Conductor cross-section, flexible (fine-wire), min.: 16 AWG
  • Conductor cross-section, flexible (fine-wire), min.: 1,5 mm²
  • Conductor cross-section, rigid (single-wire/multiwire), max.: 2 AWG
  • Conductor cross-section, rigid (single-wire/multiwire), max.: 35 mm²
  • Conductor cross-section, rigid (single-wire/multiwire), min.: 1,5 mm²
  • Conductor cross-section, rigid (single-wire/multiwire), min.: 16 AWG
  • Dimension: 550V
  • Housing material surge protection components: PA UL 94 V-0
  • Installation type: DIN rail 35 mm
  • Integrated back-up fuse: no

More info

▲
ApprovalsUL
Arrester surge current (8/20 µs) [total]160 kA
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate2,025 kg CO2e / 1 Piece
Conductor cross-section, flexible (fine-wire), max.2 AWG
Conductor cross-section, flexible (fine-wire), max.35 mm²
Conductor cross-section, flexible (fine-wire), min.16 AWG
Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
Dimension550V
Housing material surge protection componentsPA UL 94 V-0
Installation typeDIN rail 35 mm
Integrated back-up fuseno
Max. mains-side overcurrent protection160 A gL/gG
Maximum back-up fuse160 A
Maximum continuous voltage (L-N)550 V
Maximum continuous voltage AC550 V
Maximum discharge current (8/20 μs)40 kA
Maximum discharge current (8/20 μs) [L-N]40 kA
Minimum distance1,5 mm
Network formOther
Nominal discharge current (8/20 µs)15 kA
Nominal discharge current (8/20 µs) [L-N]20 kA
Nominal voltage AC (50/60 Hz)400 V
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole number4
Pole version4
Protection level [L-N]≤2,4
Protection ratingIP20
Remote signallingno
Residual voltage [L-N] @ 1 kA1,7 kV
Residual voltage [L-N] @ 5 kA2,1 kV
Response time<25 ns
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Short-circuit resistantyes
Signalling on deviceVisual
SPD to EN 61643-11Type 2
SPD to IEC 61643-1Class II
SPD to UL 1449Type 4
Test class, type 2yes
TN network formyes
TN-C-S network formyes
TN-S network formyes
Torque4 Nm
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.915 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s700 V
