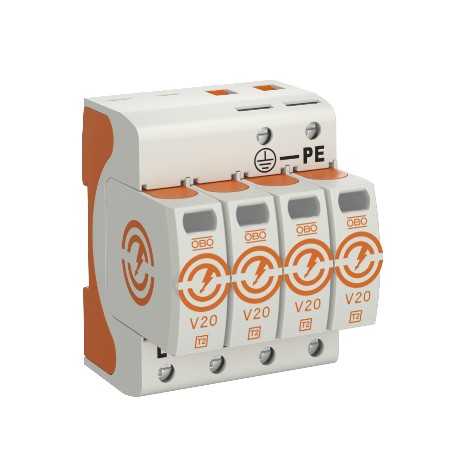

OBO BETTERMANN V20-4-385 5095194 OBO BETTERMANN DOWNLOADER T. 2 V20-4-385 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5095194 OBO BETTERMANN DOWNLOADER T. 2 V20-4-385

V20-4-385

5095194

OBO BETTERMANN

1 Pcs.

DOWNLOADER T. 2 V20-4-385

Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Obo Bettermann, the V20-4-385 is a four-pole type 2 surge arrestor designed to deliver robust overvoltage protection across complex power lines. Commercial and industrial facilities deploy multi-pole surge devices in main distribution boxes to safeguard internal electrical assets from external grid transients. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: V20-4-385
  • Catalogue code: 5095194
  • Catalogue title: 5095194 OBO BETTERMANN DOWNLOADER T. 2 V20-4-385
  • Product description: Surge arrestor, type 2 • For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44) • Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors • Modular connectable arresto
  • Manufacturer summary: DOWNLOADER T. 2 V20-4-385

More info

▲
Surge arrestor, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors
• Modular connectable arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.
