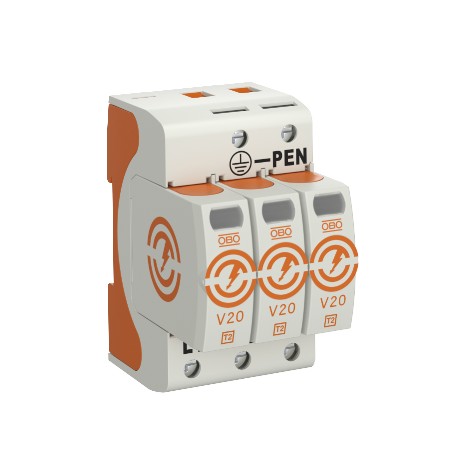

OBO BETTERMANN V20-3-320 5095173 OBO BETTERMANN DOWNLOADER T. 2 V20-3-320 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5095173 OBO BETTERMANN DOWNLOADER T. 2 V20-3-320

V20-3-320

5095173

OBO BETTERMANN

1 Pcs.

DOWNLOADER T. 2 V20-3-320

Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann model V20-3-320 acts as a reliable surge arrestor engineered to protect electrical distribution grids against transient voltage spikes and switching anomalies. Installers routinely mount these modular suppression components within industrial control cabinets to protect downstream equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: V20-3-320
  • Catalogue code: 5095173
  • Catalogue title: 5095173 OBO BETTERMANN DOWNLOADER T. 2 V20-3-320
  • Product description: Surge arrestor, type 2 • For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44) • Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors • Modular connectable arresto
  • Manufacturer summary: DOWNLOADER T. 2 V20-3-320

More info

▲
Surge arrestor, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors
• Modular connectable arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.
