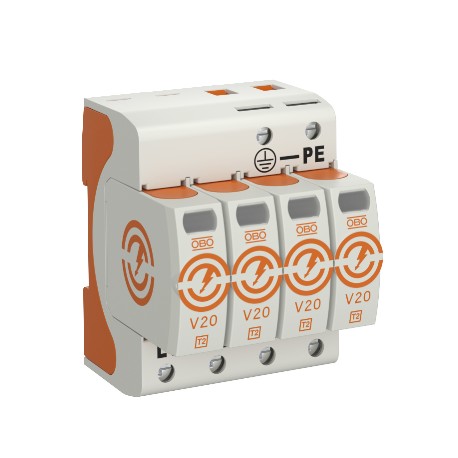

OBO BETTERMANN V20-4-280 V20-4-280 5095164 OBO BETTERMANN DOWNLOADER T. 2 V20-4-280 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V20-4-280 5095164 OBO BETTERMANN DOWNLOADER T. 2 V20-4-280

V20-4-280

5095164

OBO BETTERMANN

1 Pcs.

DOWNLOADER T. 2 V20-4-280 V20 V20-4-280.4 pole 280V surge arrester,

Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann V20-4-280 type 2 surge protection downloader is designed to safeguard industrial electrical systems against transient overvoltages resulting from switching operations or distant lightning strikes. These protective devices are installed in sub-distribution boards to limit voltage spikes and protect sensitive electronic loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN (EF009928): Yes
  • System configuration TN-C-S (EF009933): Yes
  • System configuration TN-S (EF009930): Yes
  • Nominal discharge surge current (8/20) (EF004214): 20 kA
  • Max. discharge surge current (8/20) (EF012274): 40 kA
  • Nominal voltage AC (EF004220): 230 V
  • Max. continuous voltage AC (EF004198): 280 V
  • Voltage protection level (EF003525): 1.3 kV
  • Voltage protection level L-N (EF004236): 1.3 kV
  • Integrated backup fuse (EF008797): No
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Construction size (EF002566): 4 modular spacing
  • Signalling at the device (EF004241): Optic
  • Category type 2 (EF004230): Yes
  • Degree of protection (IP) (EF005474): IP20

More info

▲
Surge arrestor, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors
• Modular connectable arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.
