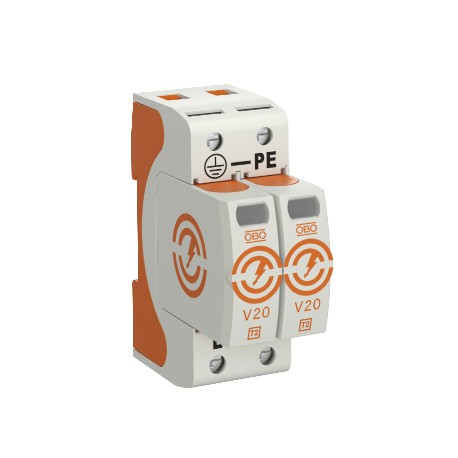

OBO BETTERMANN V20-2-150 5095152 OBO BETTERMANN DOWNLOADER T. 2 V20-2-150 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5095152 OBO BETTERMANN DOWNLOADER T. 2 V20-2-150

V20-2-150

5095152

OBO BETTERMANN

1 Pcs.

DOWNLOADER T. 2 V20-2-150

Automation > Surge protection device for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing dependable fault current mitigation, the Obo Bettermann V20-2-150 type 2 surge arrestor protects electrical networks from transient overvoltage spikes. Technicians install modular protective elements within control panels to secure sensitive instrumentation and maintain continuous industrial plant operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: V20-2-150
  • Catalogue code: 5095152
  • Catalogue title: 5095152 OBO BETTERMANN DOWNLOADER T. 2 V20-2-150
  • Product description: Surge arrestor, type 2 • For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44) • Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors • Modular connectable arresto
  • Manufacturer summary: DOWNLOADER T. 2 V20-2-150

More info

▲
Surge arrestor, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole, through high-performance varistors
• Modular connectable arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.
