View larger
Images are for illustrative purposes only. Please refer to data sheet for details

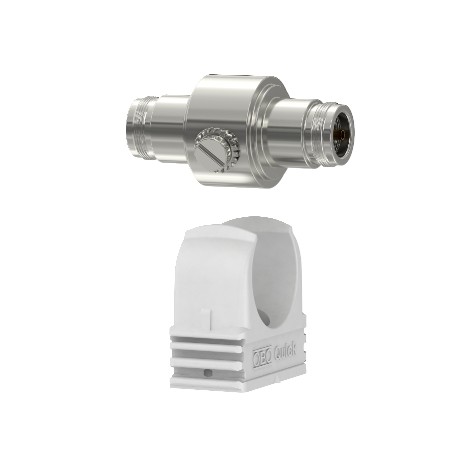

5093988 OBO BETTERMANN PROTECTION COAXIAL DS-N
DS-N W/W
5093988
OBO BETTERMANN
1 Pcs.
PROTECTION COAXIAL DS-N
Coaxial protection device for N connection: female/female. Coaxial data cable protection devices• High pulsed current carrying capacity 2 x 2.5 kA (10/350) • Simple mounting (adapter plug), m = plug/f = female connector • Optimised transmission behaviour • 5-year guarantee• With N connector • Including OBO M25 Quick clip for simple installation
Automation > Combined arrester for data networks/MCR-technology
TBS Transient and lightning protection systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Arrestor monitoring | no |
|---|---|
| Capacity (wire-earth) | <20 pF |
| Capacity (wire-wire) | <10 pF |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0435 kg CO2e / 1 Piece |
| Cut-off frequency | 3000 MHz |
| Dimension | 130V |
| Explosion-tested version | no |
| Impulse durability wire-earth | C2: 10 kV / 5 kA (8/20µs) |
| Impulse durability wire-wire | C2: 10 kV / 5 kA (8/20µs) |
| Insertion loss | ≤0,62 dB |
| Insulation resistance | >1 GΩ |
| Kategorie | Type 1+2 / D1+C2 |
| Lightning impulse current | 2,5 kA |
| Lightning protection zone LPZ | 0→2 |
| Maximum continuous voltage AC | 130 V |
| Maximum continuous voltage DC | 185 V |
| Nominal load current AC | 7 A |
| Nominal load current DC | 10 A |
| Number of poles | 1 |
|---|---|
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Plug-in system | N |
| Protection level | <800 V |
| Protection level wire-earth | <800 V |
| Protection level wire-wire | <800 V |
| Protection rating | IP40 |
| Return loss | ≥14 dB |
| Screening | Direct |
| Shielding connection available | yes |
| Signalling on device | None |
| SPD to IEC 61643-21 | Class I+II / D1+C2 |
| Telecommunications contact | no |
| Testing standard | IEC 61643-21 |
| Total discharge current (10/350) | 5 kA |
| Total discharge current (8/20) | 10 kA |
| Wave resistance | 50 Ω |
