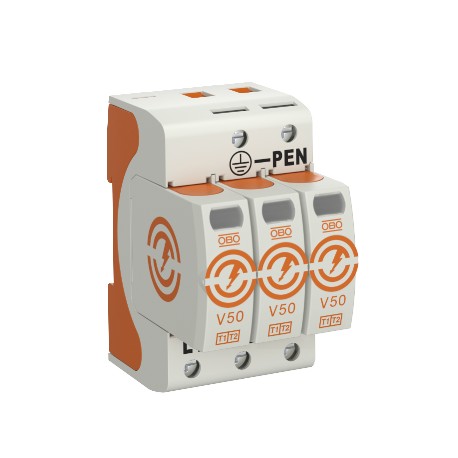

OBO BETTERMANN V50-3-385 5093574 OBO BETTERMANN ARRESTER 1+2 V50-3-385 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5093574 OBO BETTERMANN ARRESTER 1+2 V50-3-385

V50-3-385

5093574

OBO BETTERMANN

1 Pcs.

ARRESTER 1+2 V50-3-385

Automation > Combined arrester for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 5093574 OBO BETTERMANN ARRESTER 1+2 V50-3-385 manufactured by Obo Bettermann functions as a three-pole lightning current combination arrestor built for robust electrical protection. Multi-pole surge arresters are routinely installed in industrial distribution panels to prevent electrical damage from high-energy transient disturbances. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: V50-3-385
  • Catalogue code: 5093574
  • Catalogue title: 5093574 OBO BETTERMANN ARRESTER 1+2 V50-3-385
  • Product description: Lightning current combination arrestor, type 2 • For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305) • Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350)

More info

▲
Lightning current combination arrestor, type 2

• For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling

Application: Lightning current equipotential bonding for buildings of class III and IV.
