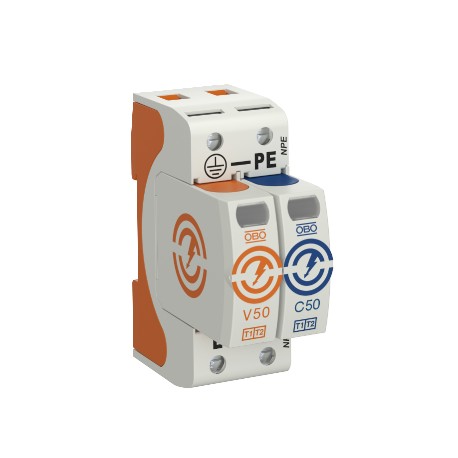

OBO BETTERMANN V50-1+NPE-320 5093552 OBO BETTERMANN ARRESTER 1+2 V50-1+NPE-320 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5093552 OBO BETTERMANN ARRESTER 1+2 V50-1+NPE-320

V50-1+NPE-320

5093552

OBO BETTERMANN

1 Pcs.

ARRESTER 1+2 V50-1+NPE-320

Automation > Combined arrester for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 5093552 OBO BETTERMANN ARRESTER 1+2 V50-1+NPE-320 manufactured by Obo Bettermann serves as a lightning current combination arrestor designed for electrical safety compliance. Type 2 protective devices are widely installed within industrial control panels and secondary distribution enclosures to suppress harmful voltage surges before they propagate. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: V50-1+NPE-320
  • Catalogue code: 5093552
  • Catalogue title: 5093552 OBO BETTERMANN ARRESTER 1+2 V50-1+NPE-320
  • Product description: Lightning current combination arrestor, type 2 • For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305) • Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350)

More info

▲
Lightning current combination arrestor, type 2

• For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling

Application: Lightning current equipotential bonding for buildings of class III and IV.
