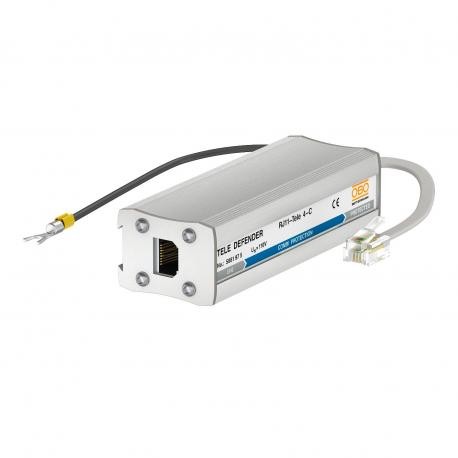

5081975 OBO BETTERMANN DATA PROTECTION RJ11-TELE 4-F
RJ11-TELE 4-C
5081975
OBO BETTERMANN
1 Pcs.
Automation > Surge protection device for data networks/MCR-technology
TBS Transient and lightning protection systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Data protection devices such as the Obo Bettermann RJ11-TELE 4-C shield telecommunication lines, modem interfaces, and analog telephony hardware from transient overvoltages and lightning surges. These specialized protectors are installed in industrial control rooms and office environments to divert high-energy surges safely to earth and protect communication hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Capacity (wire-earth): <20 pF
- Capacity (wire-wire): <500 pF
- CO2 Footprint (GWP) Cradle-to-Gate: 1,5602 kg CO2e / 1 Piece
- Cut-off frequency: 12 MHz
- Dimension: 170V
- Earthing via:: Connection cable
- Impulse durability wire-earth: C2: 2 kV / 1 kA (8/20)
- Impulse durability wire-wire: C1: 1 kV / 0,5 kA (8/20)
- Insertion loss: ≤3 dB
- Insulation resistance: > 34 MΩ
- Kategorie: Type 1+2+3 / D1+C2+C1
- Lightning protection zone LPZ: 0→3
- Maximum continuous voltage AC: 120 V
- Maximum continuous voltage DC: 170 V
- Nominal load current AC: 0,2 A
- Nominal load current DC: 0,3 A
More info
▲| Capacity (wire-earth) | <20 pF |
|---|---|
| Capacity (wire-wire) | <500 pF |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5602 kg CO2e / 1 Piece |
| Cut-off frequency | 12 MHz |
| Dimension | 170V |
| Earthing via: | Connection cable |
| Impulse durability wire-earth | C2: 2 kV / 1 kA (8/20) |
| Impulse durability wire-wire | C1: 1 kV / 0,5 kA (8/20) |
| Insertion loss | ≤3 dB |
| Insulation resistance | > 34 MΩ |
| Kategorie | Type 1+2+3 / D1+C2+C1 |
| Lightning protection zone LPZ | 0→3 |
| Maximum continuous voltage AC | 120 V |
| Maximum continuous voltage DC | 170 V |
| Nominal load current AC | 0,2 A |
| Nominal load current DC | 0,3 A |
| Number of poles | 4 |
|---|---|
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Plug-in system | RJ11 |
| Protection level wire-earth | <600 V |
| Protection level wire-wire | <300 V |
| Protection level, wire-earth at 1 kV/µs (C3) | <245 |
| Protection rating | IP40 |
| Series resistance per wire | 8,2 Ω ± 10 % |
| Signalling on device | Without |
| SPD to IEC 61643-21 | Class I+II+III / D1+C2+C1 |
| Testing standard | IEC 61643-21 |
| Total discharge current (10/350) | 1,5 kA |
| Total discharge current (8/20) | 4 kA |
| Version for | Combi protection, 4 wires |
