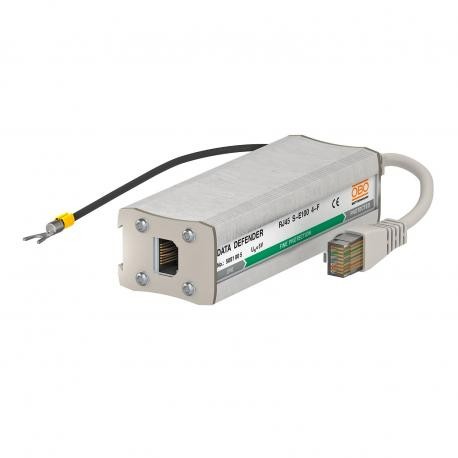

OBO BETTERMANN RJ45 S-E100 4-F 5081005 OBO BETTERMANN PROTECTION DATA TD-4/I View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5081005 OBO BETTERMANN PROTECTION DATA TD-4/I

RJ45 S-E100 4-F

5081005

OBO BETTERMANN

1 Pcs.

PROTECTION DATA TD-4/I Fine protection for 4-wire information technology systems with RJ45. Data line protection device for IT systems • In aluminium housing • RJ45 connector• Incl. 150 mm connection cable with RJ45 connectors• Simple mounting using adapter• 2-stage protection circuit • DIN rail mounting with DLS-BS accessories (5082 38 2)Application: Twisted Pair, control circuits, RJ45 communication cables

Automation > Surge protection device for data networks/MCR-technology
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann designed the RJ45 S-E100 4-F data protection unit to secure sensitive communication cabling against transient overvoltages and line interference. These network protection devices are widely integrated into structured cabling environments to safeguard data ports on computer systems and automation hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Arrestor monitoring: no
  • Capacity (wire-earth): <20 pF
  • Capacity (wire-wire): <50 pF
  • Channel performance Ansi/EA: CAT 5e
  • Channel performance ISO/IEC: Class E
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,4923 kg CO2e / 1 Piece
  • Cut-off frequency: 100 MHz
  • Dimension: 6.2V
  • Earthing via:: Connection cable
  • Impulse durability wire-earth: C1: 1 kV / 0,5 kA (8/20µs)
  • Impulse durability wire-wire: C1: 1 kV / 0,5 kA (8/20µs)
  • Insertion loss: ≤3 dB
  • Insulation resistance: >500 MΩ
  • Kategorie: Type 2+3 / C2+C1
  • Lightning protection zone LPZ: 2→3
  • Maximum continuous voltage AC: 4,2 V

More info

▲
Arrestor monitoringno
Capacity (wire-earth)<20 pF
Capacity (wire-wire)<50 pF
Channel performance Ansi/EACAT 5e
Channel performance ISO/IECClass E
CO2 Footprint (GWP) Cradle-to-Gate1,4923 kg CO2e / 1 Piece
Cut-off frequency100 MHz
Dimension6.2V
Earthing via:Connection cable
Impulse durability wire-earthC1: 1 kV / 0,5 kA (8/20µs)
Impulse durability wire-wireC1: 1 kV / 0,5 kA (8/20µs)
Insertion loss≤3 dB
Insulation resistance>500 MΩ
KategorieType 2+3 / C2+C1
Lightning protection zone LPZ2→3
Maximum continuous voltage AC4,2 V
Maximum continuous voltage DC6 V
Nominal load current AC0,7 A
Nominal load current DC1 A
Number of poles4
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemRJ45
Protection level wire-earth<750 V
Protection level wire-wire<40 V
Protection ratingIP40
ScreeningIndirect
Shielding connection availableyes
Signalling on deviceWithout
SPD to IEC 61643-21Class II+III / C2+C1
Testing standardIEC 61643-21
Total discharge current (8/20)2,5 kA
Version forFine protection, 4 wires + shield
