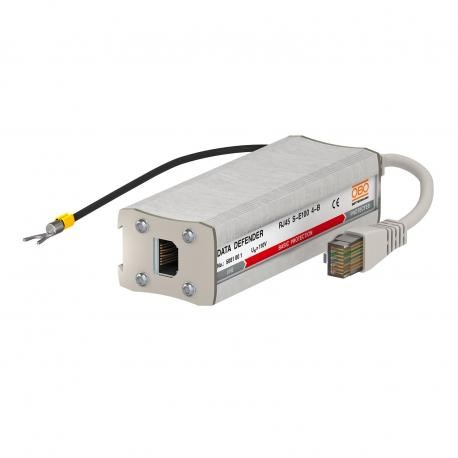

OBO BETTERMANN RJ45 S-E100 4-B 5081001 OBO BETTERMANN DATA PROTECTION RJ45 S-E100 4-C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5081001 OBO BETTERMANN DATA PROTECTION RJ45 S-E100 4-C

RJ45 S-E100 4-B

5081001

OBO BETTERMANN

1 Pcs.

DATA PROTECTION RJ45 S-E100 4-C Basic protection for 4-wire information technology systems with RJ45. Data line protection device for IT systems • In aluminium housing • RJ45 connector• Incl. 150 mm connection cable with RJ45 connectors• Simple mounting using adapter• 2-stage protection circuit • DIN rail mounting with DLS-BS accessories (5082 38 2)Application: Twisted Pair, control circuits, RJ45 communication cables

Automation > Surge protection device for data networks/MCR-technology
TBS Transient and lightning protection systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann engineered the RJ45 S-E100 4-B data protection module to shield high-speed Ethernet infrastructure from transient surges and electrostatic discharges. This hardware category is commonly positioned along network feeds to protect sensitive communication ports on switches, routers, and industrial controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Arrestor monitoring: no
  • Capacity (wire-earth): <20 pF
  • Capacity (wire-wire): <20 pF
  • Channel performance Ansi/EA: CAT 5e
  • Channel performance ISO/IEC: Class E
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,4923 kg CO2e / 1 Piece
  • Cut-off frequency: 463 MHz
  • Dimension: 170V
  • Earthing via:: Connection cable
  • Impulse durability wire-earth: C2: 3 kV / 1,5 kA (8/20µs)
  • Impulse durability wire-wire: C2: 3 kV / 1,5 kA (8/20µs)
  • Insertion loss: ≤3 dB
  • Insulation resistance: >1 GΩ
  • Kategorie: Type 1+2 / D1+C2
  • Lightning impulse current: 0,5 kA
  • Lightning protection zone LPZ: 0→2

More info

▲
Arrestor monitoringno
Capacity (wire-earth)<20 pF
Capacity (wire-wire)<20 pF
Channel performance Ansi/EACAT 5e
Channel performance ISO/IECClass E
CO2 Footprint (GWP) Cradle-to-Gate1,4923 kg CO2e / 1 Piece
Cut-off frequency463 MHz
Dimension170V
Earthing via:Connection cable
Impulse durability wire-earthC2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wireC2: 3 kV / 1,5 kA (8/20µs)
Insertion loss≤3 dB
Insulation resistance>1 GΩ
KategorieType 1+2 / D1+C2
Lightning impulse current0,5 kA
Lightning protection zone LPZ0→2
Maximum continuous voltage AC120 V
Maximum continuous voltage DC170 V
Nominal load current AC0,7 A
Nominal load current DC1 A
Number of poles4
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemRJ45
Protection level wire-earth<850 V
Protection level wire-wire<700 V
Protection ratingIP40
ScreeningIndirect
Shielding connection availableyes
Signalling on deviceWithout
SPD to IEC 61643-21Class I+II / D1+C2
Testing standardIEC 61643-21
Total discharge current (10/350)2,5 kA
Total discharge current (8/20)7,5 kA
Version forBasic protection, 4 wires + shield
