View larger
Images are for illustrative purposes only. Please refer to data sheet for details

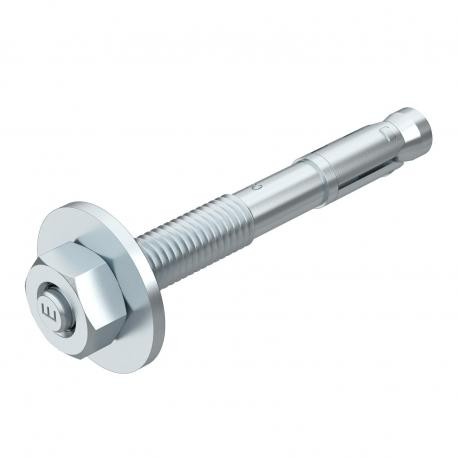

BZ-U10-30-50/110 3498340 OBO BETTERMANN ANCHOR BOLTS BZ-U10-30-50/110
BZ-U10-30-50/110
3498340
OBO BETTERMANN
25 Pcs.
ANCHOR BOLTS BZ-U10-30-50/110
BZ-U BZ-U10-30-50/110 bolt anchor, M10x110mm Steel, St, electrozinc-plated, EN ISO 19598 / EN ISO 4042
Bolt Anchor BZ-U G
Automation > Anchor bolt
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Bolt tie BZ for the anchoring of medium-duty to heavy-duty loads, both in cracked and non-cracked concrete. It combines high approved loads with small edge distances and axial spacings.
| Feature Name | Feature Value |
|---|---|
| Material anchor (EF015711) | Steel |
| Surface protection anchor (EF015713) | Galvanic/electrolytic zinc plated |
| Material sleeve (EF001260) | Steel |
| Surface protection sleeve (EF015714) | Galvanic/electrolytic zinc plated |
| Thread type (EF001758) | Metric |
| Thread size (metric) (EF003563) | 10 |
| Length (EF001438) | 110 mm |
| Drill hole diameter (EF004562) | 10 mm |
| Min. drill hole depth (EF000384) | 75 mm |
| Max. clamping thickness (EF015006) | 30 mm |
