View larger
Images are for illustrative purposes only. Please refer to data sheet for details

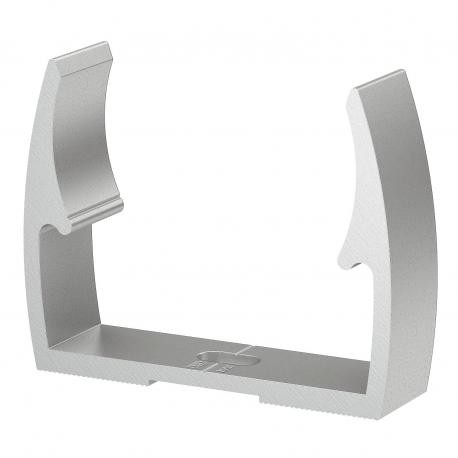

2149950 OBO BETTERMANN SENS. QUICK ALQ M50 ALU
ALQ M50
2149950
OBO BETTERMANN
25 Pcs.
SENS. QUICK ALQ M50 ALU
Quick clip, aluminium. OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.Slot for side alignment during mounting with wood screw or knock-in anchor.Recommended fastening spacing 50−60 cm.
Cables > Tube clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Clamping range D, max. | 50 mm |
|---|---|
| Clamping range D, min. | 50 mm |
| Closed | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4544 kg CO2e / 1 Piece |
| Dimension | M50 |
| Dimension A | 60 mm |
| Dimension B | 18 mm |
| Dimension E | 6,1 mm |
| Dimension F | 12 mm |
| Dimension h | 33,5 mm |
| Dimension H | 46,5 mm |
|---|---|
| Expandable | no |
| Fastening type | Screw hole |
| Halogen-free | no |
| Material | Aluminium |
| Nominal size | 50 |
| Number of cables/pipes | 1 |
| Pull-out value | 175 N |
| UV-resistant | yes |
| With inlay | no |
