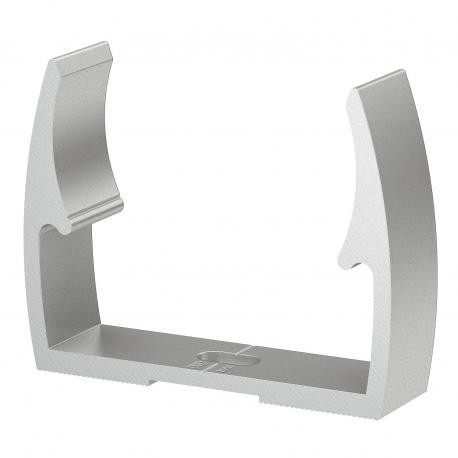

OBO BETTERMANN ALQ M16 2149916 OBO BETTERMANN SENS. QUICK ALQ M16 ALU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2149916 OBO BETTERMANN SENS. QUICK ALQ M16 ALU

ALQ M16

2149916

OBO BETTERMANN

100 Pcs.

SENS. QUICK ALQ M16 ALU Quick clip, aluminium. OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.Slot for side alignment during mounting with wood screw or knock-in anchor.Recommended fastening spacing 50−60 cm.

Cables > Tube clamp
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann ALQ M16 SENS. QUICK ALQ M16 ALU functions as a sturdy aluminum conduit clip built for secure surface mounting in demanding industrial applications. Metallic fastening components of this standard are routinely chosen by plant engineers when high mechanical loading capacity and durability are required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Clamping range D, max.: 16 mm
  • Clamping range D, min.: 16 mm
  • Closed: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1324 kg CO2e / 1 Piece
  • Dimension: M16
  • Dimension A: 22 mm
  • Dimension B: 18 mm
  • Dimension E: 5,1 mm
  • Dimension F: 9,5 mm
  • Dimension h: 18,5 mm
  • Dimension H: 25 mm
  • Expandable: no
  • Fastening type: Screw hole
  • Halogen-free: no
  • Material: Aluminium
  • Nominal size: 16

More info

▲
Clamping range D, max.16 mm
Clamping range D, min.16 mm
Closedno
CO2 Footprint (GWP) Cradle-to-Gate0,1324 kg CO2e / 1 Piece
DimensionM16
Dimension A22 mm
Dimension B18 mm
Dimension E5,1 mm
Dimension F9,5 mm
Dimension h18,5 mm
Dimension H25 mm
Expandableno
Fastening typeScrew hole
Halogen-freeno
MaterialAluminium
Nominal size16
Number of cables/pipes1
Pull-out value55 N
UV-resistantyes
With inlayno
