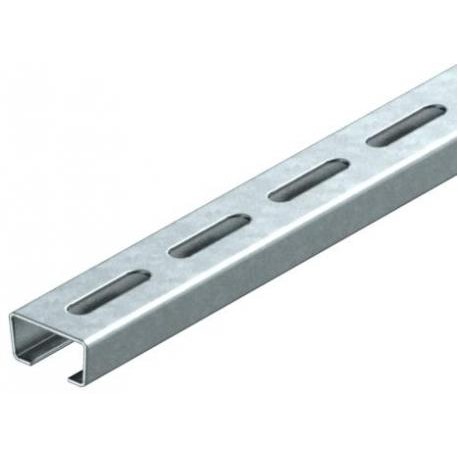

OBO BETTERMANN AML3518P1000FT AML3518P1000FT 1119672 OBO BETTERMANN PROFILE 2068 L 1M FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AML3518P1000FT 1119672 OBO BETTERMANN PROFILE 2068 L 1M FT

AML3518P1000FT

1119672

OBO BETTERMANN

10 m.

PROFILE 2068 L 1M FT Profile AML3518P1000FT, perfor., slot width 16.5mm 1000x35x18 Steel, St, Hot-dip galvanized, DIN EN ISO 1461 2068 L 1M FT 1119672 Profile rail 2068, slot width 16.5, FS, perforated

Automation > Mounting rail/-profile
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

AML3518P1000FT 1119672 OBO BETTERMANN PROFILE 2068 L 1M FT serves as a slotted C-profile mounting channel utilized extensively in industrial electrical and mechanical setups for running cables and supporting equipment. These hot-dip galvanized steel rails provide a reliable, adjustable anchoring system for various fasteners and brackets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: AML3518P1000FT
  • Length mm: 1000
  • Dimension W x H mm: 35 x 18
  • Material thickness mm: 1,5
  • Dimen- sion L mm: 1000
  • Pack. m: 10
  • Weight kg/100 m: 89,000
  • Item No.: 1119672
  • Length (EF001438): 1000 mm
  • Width (EF000008): 35 mm
  • Height (EF000040): 18 mm
  • Material thickness (EF000386): 1.5 mm
  • Profile shape (EF005179): C-profile
  • Type of perforation (EF004147): Slotted
  • With toothing (EF000571): No
  • Area moment of inertia Iy (EF012513): 0.44 cm4

More info

▲

2068 L 1M FT 1119672 Profile rail 2068, slot width 16.5, FS, perforated


TypeAML3518P1000FT
Length mm1000
Dimension W x H mm35 x 18
Material thickness mm1,5
Dimen- sion L mm1000
Pack. m10
Weight kg/100 m89,000
Item No.1119672

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
