View larger
Images are for illustrative purposes only. Please refer to data sheet for details

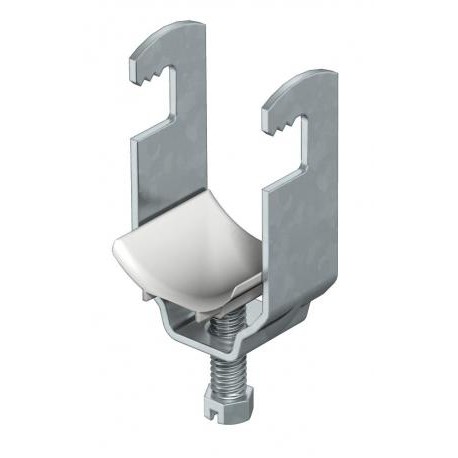

2056F 28 FT 1169289 OBO BETTERMANN CLAMP ON PROFILE 2056F 28 FT
2056F 28 FT
1169289
OBO BETTERMANN
100 Pcs.
CLAMP ON PROFILE 2056F 28 FT
Clamp on profile 2056F 28 FT, 22-28mm Steel, St,Hot dipped galvanized, DIN EN ISO 1461
2056F 28 FT 1169289 Clamp clip, single, plastic pressure trough FT
Cables > One-piece strut clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Suitable for flat, bracket and U irons of 4–12 mm material thickness.
| Type | 2056F 28 FT |
| Clamping range D mm | 22-28 |
| Pack. pcs | 100 |
| Weight kg/100 pcs. | 6,000 |
| Item No. | 1169289 |
| Feature Name | Feature Value |
|---|---|
| Chucking range (EF002391) | 22 mm |
| For pipe size metric (M..) (EF004713) | 25 |
| Max. number of cables (EF001052) | 1 |
| Material clamp (EF006530) | Steel |
| Surface protection clamp (EF005142) | Hot dip galvanized |
| Material shell (EF014679) | Plastic |
| Material quality shell (EF014685) | Polypropylene (PP) |
| Surface protection shell (EF014680) | Hot dip galvanized |
| Material screw (EF006529) | Steel |
| Surface protection screw (EF005143) | Hot dip galvanized |
| With counter shell (EF014681) | No |
| Mounting method (EF000003) | Flat profile |
| Halogen free (EF000025) | Yes |
