2056 E 37 FT 1174614 OBO BETTERMANN CLAMP ON PROFILE 2056 E 37 FT
2056 E 37 FT
1174614
OBO BETTERMANN
25 Pcs.
Cables > One-piece strut clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

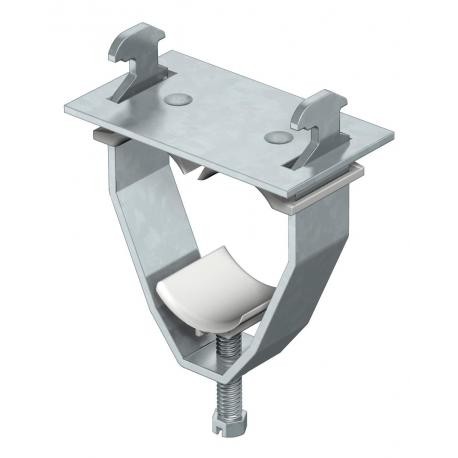

Clamp on profile manufactured by Obo Bettermann, catalog number 2056 E 37 FT, mounts industrial cables securely onto support rails within electrical distribution panels. These profile clamps provide firm mechanical retention for heavy power and control cables.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable diameter, max.: 37 mm
- Cable diameter, min.: 34 mm
- Clamping range D, max.: 37 mm
- Clamping range D, min.: 34 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 0,5952 kg CO2e / 1 Piece
- Dimension: 34-37mm
- Dimension A: 95 mm
- Dimension B: 81 mm
- Dimension H: 118 mm
- for rail with slot width (with interval), max.: 17 mm
- for rail with slot width (with interval), min.: 16 mm
- Halogen-free: yes
- Impact-resistant: no
- Material: Steel
- Material addition: Steel
- Material of counter-trough: Plastic
More info
▲| Cable diameter, max. | 37 mm |
|---|---|
| Cable diameter, min. | 34 mm |
| Clamping range D, max. | 37 mm |
| Clamping range D, min. | 34 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5952 kg CO2e / 1 Piece |
| Dimension | 34-37mm |
| Dimension A | 95 mm |
| Dimension B | 81 mm |
| Dimension H | 118 mm |
| for rail with slot width (with interval), max. | 17 mm |
| for rail with slot width (with interval), min. | 16 mm |
| Halogen-free | yes |
| Impact-resistant | no |
| Material | Steel |
|---|---|
| Material addition | Steel |
| Material of counter-trough | Plastic |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Number of cables/pipes | 3 |
| Surface | Hot-dip galvanised |
| Surface addition | hot galvanised |
| With counter-trough | yes |
| With metal trough | no |
| With plastic trough | yes |
