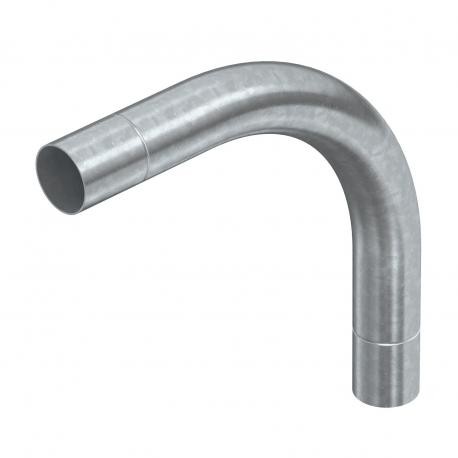

OBO BETTERMANN SBN50 FT 2046821 OBO BETTERMANN CURVE 50 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2046821 OBO BETTERMANN CURVE 50 FT

SBN50 FT

2046821

OBO BETTERMANN

5 Pcs.

CURVE 50 FT Hot-dip galvanised steel bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.

Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A hot-dip galvanized steel curve provides exceptional corrosion protection for outdoor or harsh industrial electrical conduit installations requiring secure corner routing. The Obo Bettermann SBN50 FT unit ensures long-lasting mechanical containment for heavy-duty power and data cabling.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle of the bend: 90 °
  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 4,3922 kg CO2e / 1 Piece
  • Dimension: Ø50mm
  • Dimension A: 131 mm
  • Dimension B: 358 mm
  • Dimension D: 54 mm
  • Dimension d: 51 mm
  • Dimension l: 60 mm
  • Dimension m (mm): M50
  • Dimension R: 200 mm
  • Dimension t: 1,5 mm
  • Flexible: no
  • For nominal pipe diameter: 50 mm
  • Halogen-free: no
  • Material: Steel

More info

▲
Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate4,3922 kg CO2e / 1 Piece
DimensionØ50mm
Dimension A131 mm
Dimension B358 mm
Dimension D54 mm
Dimension d51 mm
Dimension l60 mm
Dimension m (mm)M50
Dimension R200 mm
Dimension t1,5 mm
Flexibleno
For nominal pipe diameter50 mm
Halogen-freeno
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
SurfaceHot-dip galvanised
Two-partno
Version forConnector
With inspection opening and lidno
With sleeveyes
