View larger
Images are for illustrative purposes only. Please refer to data sheet for details

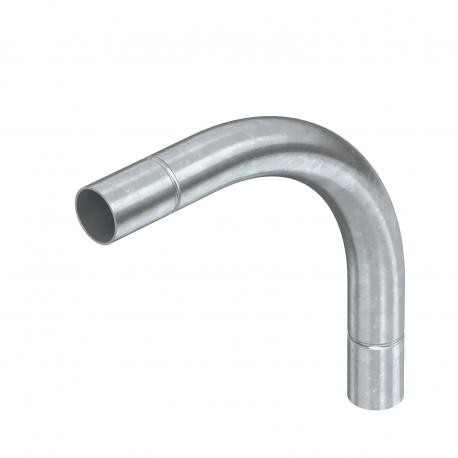

2046817 OBO BETTERMANN CURVE 20 FT
SBN20 FT
2046817
OBO BETTERMANN
25 Pcs.
CURVE 20 FT
Hot-dip galvanised steel bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5426 kg CO2e / 1 Piece |
| Dimension | Ø20mm |
| Dimension A | 53,7 mm |
| Dimension B | 155 mm |
| Dimension D | 22,6 mm |
| Dimension d | 20,6 mm |
| Dimension l | 30 mm |
| Dimension m (mm) | M20 |
| Dimension R | 90 mm |
| Dimension t | 1 mm |
| Flexible | no |
|---|---|
| For nominal pipe diameter | 20 mm |
| Halogen-free | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Polished surface | no |
| Surface | Hot-dip galvanised |
| Two-part | no |
| Version for | Connector |
| With inspection opening and lid | no |
| With sleeve | yes |
