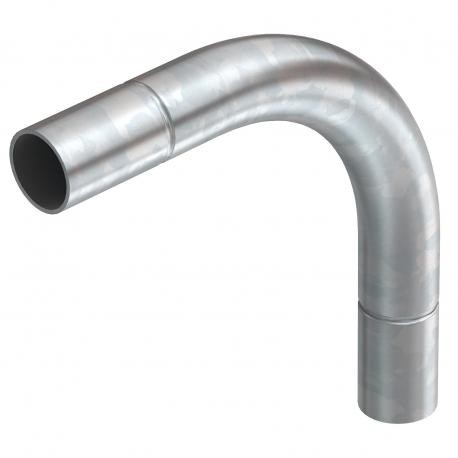

2046813 OBO BETTERMANN CURVE 50 G
SBN50 G
2046813
OBO BETTERMANN
5 Pcs.
Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Curve 50 G is a rigid metal conduit elbow produced by Obo Bettermann under part number SBN50 G. Electrical contractors use these components to negotiate directional changes within industrial raceway infrastructures without compromising the safety of enclosed wiring. Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Angle of the bend: 90 °
- Brushed surface: no
- CO2 Footprint (GWP) Cradle-to-Gate: 3,7664 kg CO2e / 1 Piece
- Dimension: Ø50mm
- Dimension A: 131 mm
- Dimension B: 358 mm
- Dimension D: 54 mm
- Dimension d: 51 mm
- Dimension l: 60 mm
- Dimension m (mm): M50
- Dimension R: 200 mm
- Dimension t: 1,5 mm
- Flexible: no
- For nominal pipe diameter: 50 mm
- Halogen-free: no
- Material: Steel
More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,7664 kg CO2e / 1 Piece |
| Dimension | Ø50mm |
| Dimension A | 131 mm |
| Dimension B | 358 mm |
| Dimension D | 54 mm |
| Dimension d | 51 mm |
| Dimension l | 60 mm |
| Dimension m (mm) | M50 |
| Dimension R | 200 mm |
| Dimension t | 1,5 mm |
|---|---|
| Flexible | no |
| For nominal pipe diameter | 50 mm |
| Halogen-free | no |
| Material | Steel |
| Polished surface | no |
| Surface | Electrogalvanized |
| Two-part | no |
| Version for | Connector |
| With inspection opening and lid | no |
| With sleeve | yes |
