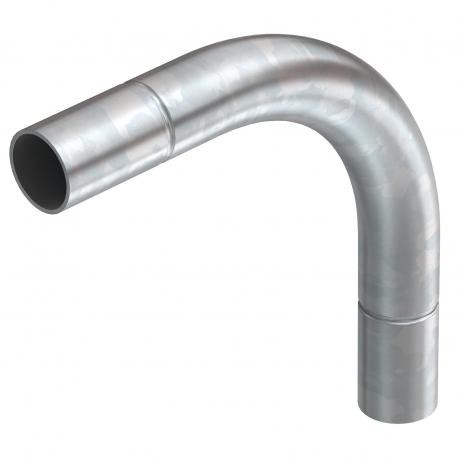

2046809 OBO BETTERMANN CURVE 20 G
SBN20 G
2046809
OBO BETTERMANN
25 Pcs.
CURVE 20 G
Electrogalvanised steel bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3913 kg CO2e / 1 Piece |
| Dimension | Ø20mm |
| Dimension A | 53,7 mm |
| Dimension B | 155 mm |
| Dimension d | 20,6 mm |
| Dimension D | 22,6 mm |
| Dimension l | 30 mm |
| Dimension m (mm) | M20 |
| Dimension R | 90 mm |
| Dimension t | 1 mm |
|---|---|
| Flexible | no |
| For nominal pipe diameter | 20 mm |
| Halogen-free | no |
| Material | Steel |
| Polished surface | no |
| Surface | Electrogalvanized |
| Two-part | no |
| Version for | Connector |
| With inspection opening and lid | no |
| With sleeve | yes |
