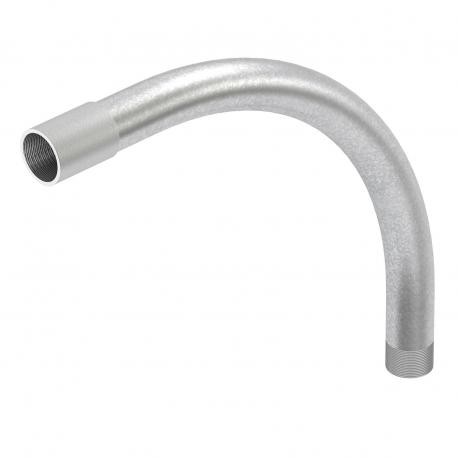

OBO BETTERMANN SBNM63 FT 2046792 OBO BETTERMANN CURVE M63 FT THREADED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2046792 OBO BETTERMANN CURVE M63 FT THREADED

SBNM63 FT

2046792

OBO BETTERMANN

3 Pcs.

CURVE M63 FT THREADED Hot-dip galvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.

Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for heavy-duty industrial applications, the Obo Bettermann SBNM63 FT curve M63 FT threaded fitting provides a robust ninety-degree corner connection for large metric conduits. Threaded steel bends form reliable, high-strength structural pathways for heavy industrial cable management systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle of the bend: 90 °
  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 5,9159 kg CO2e / 1 Piece
  • Dimension: M63x1,5
  • Dimension A: 165 mm
  • Dimension B: 446 mm
  • Dimension D: 63 mm
  • Dimension l: 25 mm
  • Dimension m (mm): M63
  • Dimension R: 250 mm
  • Dimension t: 1,8 mm
  • Flexible: no
  • For nominal pipe diameter: 63 mm
  • Halogen-free: no
  • Material: Steel
  • Polished surface: no

More info

▲
Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate5,9159 kg CO2e / 1 Piece
DimensionM63x1,5
Dimension A165 mm
Dimension B446 mm
Dimension D63 mm
Dimension l25 mm
Dimension m (mm)M63
Dimension R250 mm
Dimension t1,8 mm
Flexibleno
For nominal pipe diameter63 mm
Halogen-freeno
MaterialSteel
Polished surfaceno
SurfaceHot-dip galvanised
ThreadM63x1,5
Two-partno
Version forThread
With inspection opening and lidno
With sleeveyes
