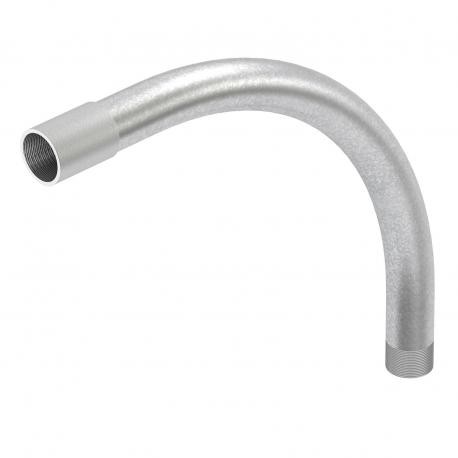

OBO BETTERMANN SBNM50 FT 2046791 OBO BETTERMANN CURVE M50 FT THREADED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2046791 OBO BETTERMANN CURVE M50 FT THREADED

SBNM50 FT

2046791

OBO BETTERMANN

5 Pcs.

CURVE M50 FT THREADED Hot-dip galvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.

Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Curve M50 FT threaded is a specialized conduit fitting component manufactured by Obo Bettermann under part number SBNM50 FT. Parts of this classification are installed within protective electrical raceway networks to safely guide rigid steel conduit around structural 90-degree corners without stressing or kinking the internal cables. Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle of the bend: 90 °
  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 4,7031 kg CO2e / 1 Piece
  • Dimension: M50x1,5
  • Dimension A: 133 mm
  • Dimension B: 358 mm
  • Dimension D: 50 mm
  • Dimension l: 25 mm
  • Dimension m (mm): M50
  • Dimension R: 200 mm
  • Dimension t: 1,6 mm
  • Flexible: no
  • For nominal pipe diameter: 50 mm
  • Halogen-free: no
  • Material: Steel
  • Polished surface: no

More info

▲
Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate4,7031 kg CO2e / 1 Piece
DimensionM50x1,5
Dimension A133 mm
Dimension B358 mm
Dimension D50 mm
Dimension l25 mm
Dimension m (mm)M50
Dimension R200 mm
Dimension t1,6 mm
Flexibleno
For nominal pipe diameter50 mm
Halogen-freeno
MaterialSteel
Polished surfaceno
SurfaceHot-dip galvanised
ThreadM50x1,5
Two-partno
Version forThread
With inspection opening and lidno
With sleeveyes
