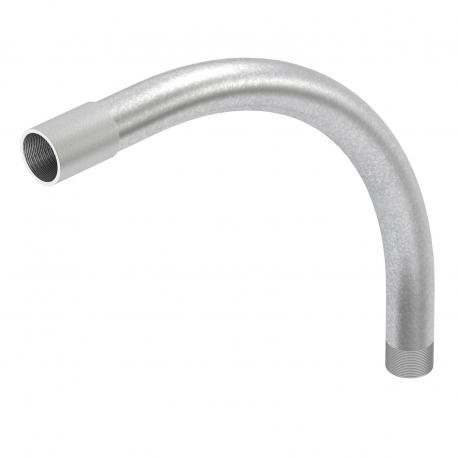

2046790 OBO BETTERMANN CURVE M40 FT THREADED
SBNM40 FT
2046790
OBO BETTERMANN
15 Pcs.
CURVE M40 FT THREADED
Hot-dip galvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.
Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,2035 kg CO2e / 1 Piece |
| Dimension | M40x1,5 |
| Dimension A | 89 mm |
| Dimension B | 279 mm |
| Dimension D | 40 mm |
| Dimension l | 20,5 mm |
| Dimension m (mm) | M40 |
| Dimension R | 170 mm |
| Dimension t | 1,6 mm |
| Flexible | no |
|---|---|
| For nominal pipe diameter | 40 mm |
| Halogen-free | no |
| Material | Steel |
| Polished surface | no |
| Surface | Hot-dip galvanised |
| Thread | M40x1,5 |
| Two-part | no |
| Version for | Thread |
| With inspection opening and lid | no |
| With sleeve | yes |
