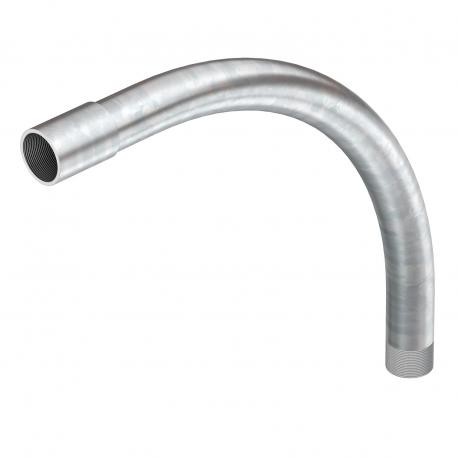

OBO BETTERMANN SBNM32 G 2046781 OBO BETTERMANN CURVE M32 G THREADED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2046781 OBO BETTERMANN CURVE M32 G THREADED

SBNM32 G

2046781

OBO BETTERMANN

20 Pcs.

CURVE M32 G THREADED Electrogalvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.

Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A threaded steel curve is an essential conduit accessory used to route electrical wiring systems around fixed structural corners while maintaining mechanical protection. This Obo Bettermann component, part number SBNM32 G, facilitates smooth directional changes in rigid cable management layouts across industrial and commercial facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle of the bend: 90 °
  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,3489 kg CO2e / 1 Piece
  • Dimension: M32x1,5
  • Dimension A: 88 mm
  • Dimension B: 254 mm
  • Dimension D: 32 mm
  • Dimension l: 18 mm
  • Dimension m (mm): M32
  • Dimension R: 150 mm
  • Dimension t: 1,6 mm
  • Flexible: no
  • For nominal pipe diameter: 32 mm
  • Halogen-free: no
  • Material: Steel
  • Polished surface: no

More info

▲
Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate1,3489 kg CO2e / 1 Piece
DimensionM32x1,5
Dimension A88 mm
Dimension B254 mm
Dimension D32 mm
Dimension l18 mm
Dimension m (mm)M32
Dimension R150 mm
Dimension t1,6 mm
Flexibleno
For nominal pipe diameter32 mm
Halogen-freeno
MaterialSteel
Polished surfaceno
SurfaceElectrogalvanized
ThreadM32x1,5
Two-partno
Version forThread
With inspection opening and lidno
With sleeveyes
